The LNG Cryogenic Paradox: Why Rigid Insulation Cracks at -162°C and How Flexible Aerogel Eliminates BOG

The LNG Cryogenic Paradox: Why Rigid Insulation Cracks at -162°C and How Flexible Aerogel Eliminates BOG

1. The Cryogenic Reality at -162°C: Static Tests vs. Dynamic Warfare

In the booming global Liquefied Natural Gas (LNG) industry, transporting fluid at -162°C (-260°F) is not a simple thermodynamic exercise—it is a brutal mechanical war. For decades, EPC contractors have relied on static R-values measured in warm, controlled laboratories to specify insulation for deep cryogenic pipelines.

However, the reality of an LNG export terminal or an FLNG (Floating Liquefied Natural Gas) vessel is anything but static. Pipelines undergo violent temperature shifts during cool-down operations, maintenance shutdowns, and restarts. This dynamic thermal stress is exposing a fatal flaw in the industry's traditional reliance on rigid insulation materials like Cellular Glass and PIR (Polyisocyanurate).

2. The 3 Fatal Flaws of Rigid Cryogenic Insulation

To understand why the industry is shifting away from legacy materials, we must analyze how they fail when exposed to the extreme realities of cryogenic cycling.

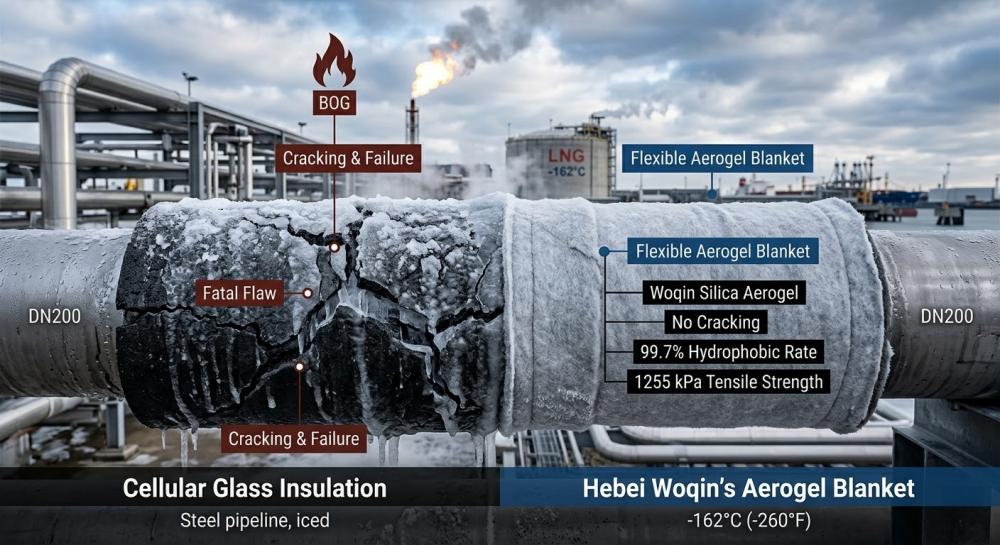

Flaw 1: Thermal Contraction & Brittle Fracture

When a massive steel LNG pipe drops from ambient temperature to -162°C, the metal violently contracts. Traditional rigid materials like cellular glass are inherently inflexible and brittle. They cannot bend, stretch, or absorb this massive mechanical stress. As the pipe shrinks, the rigid insulation is torn apart from the inside out, resulting in micro-cracking and the catastrophic delamination of joints. Once a crack forms, the thermal envelope is officially breached.

Flaw 2: The Vapor Drive & Ice Ingress

Coastal LNG terminals are surrounded by high-humidity marine air. When the rigid insulation cracks, the immense temperature differential creates a terrifying "Vapor Drive"—acting like a powerful vacuum that sucks humid air directly into the fissures. At -162°C, this moisture instantly freezes into solid ice against the steel pipe. This ice not only destroys the insulation's thermal resistance but also triggers aggressive Cryogenic CUI (Corrosion Under Insulation).

Flaw 3: The BOG Financial Hemorrhage

Insulation failure at these temperatures is not just an operational headache; it is a financial disaster. When ambient heat penetrates the compromised, ice-filled insulation, the LNG rapidly vaporizes back into a gas, creating Boil-Off Gas (BOG). Massive BOG spikes cause dangerous pressure buildups within the piping network, forcing operators to flare or vent millions of dollars' worth of natural gas into the atmosphere simply to prevent an explosion.

3. The Ultimate Antidote: Woqin’s "Dynamic Defense" Aerogel

To solve the cracking crisis and eliminate BOG, forward-thinking LNG operators are rewriting their specifications to mandate Flexible Cryogenic Insulation. Hebei Woqin’s Silica Aerogel Blanket fundamentally changes the physics of cryogenic thermal management. Backed by rigorous CNAS laboratory data, here is how we dominate the -162°C environment:

• Flexible Resilience (1255 kPa Tensile Strength): Unlike cellular glass that shatters under stress, Woqin Aerogel is a highly flexible blanket. Certified with a massive transverse tensile strength of 1255 kPa, it acts as a permanent thermal shock absorber. When the LNG pipe violently contracts, the aerogel flexes and moves synchronously with the steel, guaranteeing a seamless, zero-cracking thermal envelope over a 30-year lifespan.




• Absolute Moisture Defense (99.7% Hydrophobicity): Our aerogel utilizes a nanoscale lotus-leaf effect, achieving a staggering 99.7% hydrophobic rate. It physically repels water and cuts off the vapor drive at the microscopic level. Even in humid offshore environments, the insulation matrix remains bone-dry, permanently eliminating ice blockages and CUI risks.




• Eliminating Contraction Joints: Installing traditional cellular glass requires highly complex, labor-intensive fiberglass contraction joints every few meters just to prevent the system from shattering itself. Because Woqin Aerogel is inherently flexible, these expensive and failure-prone expansion joints are completely eliminated, drastically slashing installation time and reducing skilled labor costs.




• A1-Class Fire Safety: In the highly flammable LNG sector, fire safety is non-negotiable. Woqin Aerogel is strictly certified to Class A1 Non-Combustible standards, with a tested mass loss rate of just 2.1% and zero sustained burning time. It provides a supreme fireproof shield for your critical infrastructure.

4. Spatial Folding for FLNG and LNG Carriers

In the confined spaces of an FLNG vessel or an LNG carrier, spatial footprint is a premium asset. Aerogel delivers unparalleled thermal efficiency (extrapolating from a tested 0.020 W/(m·K) at 25°C to even lower conductivities at deep sub-zero).

This allows EPCs to replace a bulky 150mm cellular glass system with just 50mm of aerogel. This massive reduction in outer diameter allows engineers to pack more pipelines into tighter pipe racks, while simultaneously shedding hundreds of tons of deadweight from the vessel, maximizing cargo payload and fuel efficiency.

5. Conclusion: Secure Your LNG Assets Today

In the cryogenic world of -162°C, static insulation is a liability; dynamic defense is the only path forward. By combining indestructible flexibility, absolute hydrophobicity, and an ultra-thin profile, Hebei Woqin Aerogel Blankets are setting the new global standard for BOG prevention.

Stop risking your multi-billion-dollar infrastructure with brittle foams. [Contact Hebei Woqin’s Engineering Team Today] to request our CNAS cryogenic performance data, customized BOG reduction analysis, and professional flexible aerogel samples. Let's engineer a crack-free future.
