Redefining Passive Houses in Sub-Zero Climates: The Power & Reality of VIP Insulation (0.002 W/m·K)

1. The Extreme Cold Paradox in Modern Architecture

For architects and developers in Canada, Northern Europe, and Russia, designing Near Zero Energy Buildings (NZEB) or Passive Houses feels like an unwinnable war against physics. To meet strict energy codes in -30°C environments, design teams are forced to pile on traditional insulation.

However, relying on conventional materials like mineral wool or Expanded Polystyrene (EPS) to achieve passive standards is triggering a cascade of severe architectural and financial side effects. To break the physical limits of building envelopes, the industry must look beyond mere thickness and embrace advanced material science: Woqin Vacuum Insulation Panels (VIPs).

2. The Four Nightmares of Sub-Zero Architecture

Before examining the solution, we must address the critical pain points paralyzing modern cold-climate construction:

Nightmare 1: The "Bunker Effect" & Loss of Floor Area

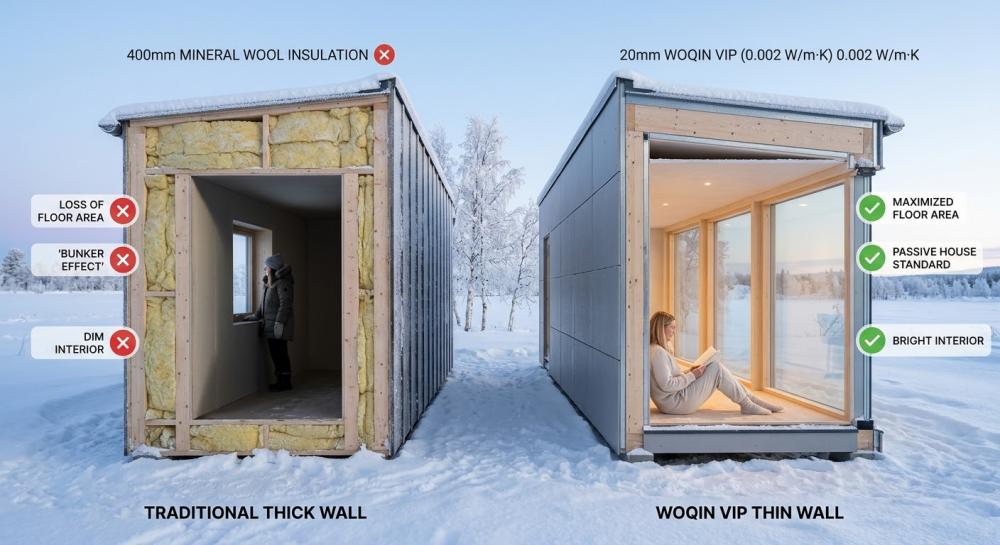

To achieve target U-values with EPS or mineral wool, exterior walls often swell to an astonishing 300mm to 400mm in thickness. This creates the "Bunker Effect," where windows sit deep within thick walls, severely restricting natural daylight. More importantly, these massive walls consume highly valuable indoor Net Lettable Area (NLA), directly eroding the developer's profit margins.

Nightmare 2: Thermal Bridging & Toxic Black Mold

In extreme cold, the temperature delta between the indoors (+22°C) and outdoors (-30°C) is immense. Certain structural nodes—like cantilevered balconies, window reveals, and roof parapets—have extremely narrow clearances. You simply cannot squeeze 100mm of traditional insulation into a 20mm gap. These uninsulated spots become "thermal bridges." Warm indoor air hits these cold spots, instantly condensing into water and breeding toxic black mold within weeks.

Nightmare 3: The Retrofit "Height Lock" Paradox

Europe and North America have massive stocks of heritage buildings requiring energy retrofits. The hardest areas to insulate are existing floors. Adding 150mm of traditional insulation to a floor raises the height so much that doors cannot open, and the first step of the staircase becomes non-compliant with fire safety codes.

Nightmare 4: The PUR/PIR Fire Hazard & Eco-Taxes

While rigid polyurethane (PIR) is thinner than mineral wool, it poses a severe fire risk, releasing lethal toxic smoke when ignited. Furthermore, Nordic countries impose heavy eco-taxes on materials containing certain blowing agents or fluorocarbons.

3. The VIP Advantage: 0.002 W/(m·K) Data-Driven Domination

Woqin Vacuum Insulation Panels manipulate the fundamental physics of heat transfer by evacuating air from a microporous core. Backed by rigorous CNAS/CMA testing, VIPs dismantle the four nightmares:

• Space is Money (0.002 W/m·K): With a thermal conductivity of just 0.002 W/(m·K), VIPs are up to 10 to 20 times more efficient than traditional materials. A mere 20mm to 30mm VIP board delivers the same insulation as 200mm of rockwool. This reclaims massive amounts of NLA for developers and eliminates the "Bunker Effect" for architects.

• The Ultimate Thermal Bridge Detailer: Its ultra-thin profile allows it to easily slide into tight window reveals, balcony connections, and roof upstands, seamlessly closing the thermal envelope and eradicating mold risks.

• Class A2 Fire Safety: Our VIPs meet stringent Class A2 combustion performance standards. In standardized testing, the furnace temperature rise was a mere 8°C, with a total heat release of just 1.3MJ. It is safe, non-toxic, and avoids the steep eco-taxes associated with highly combustible foams.

4. The Elephant in the Room: Real-World Limitations & Engineering Fail-Safes

No building material is a magical cure-all. VIPs have two well-known "fragilities," but at Hebei Woqin, we engineer around them to provide total peace of mind for General Contractors:

Limitation 1: VIPs Cannot Be Cut On-Site

Cutting a VIP destroys the vacuum.

• The Woqin Solution (CAD Pre-fabrication): We provide a 100% bespoke CAD pre-fabrication service. You send us your blueprints, and we manufacture the VIPs to the exact dimensions required. They arrive on-site like a tailored jigsaw puzzle. Workers simply "plug and play," which actually drastically reduces on-site labor hours and installation errors.

Limitation 2: Fear of Puncture and Vacuum Loss

Architects often ask: "What if a panel is accidentally punctured by a drill or nail?"

• The Woqin Solution (The Fiberglass Fail-Safe): We designed our VIP core using high-density micro-fiber glass wool. This is your ultimate safety net. If a panel is punctured and loses its vacuum, it does not become useless. The core material still acts as a premium insulator, retaining a baseline thermal conductivity of approximately 0.030 to 0.035 W/(m·K)—which is still vastly superior to standard EPS. The system will safely maintain thermal integrity until the damaged modular panel is easily replaced during routine maintenance.

5. Conclusion

VIP insulation is the bridge between uncompromising architectural vision and brutal sub-zero reality. By acknowledging its material realities and leveraging smart pre-fabrication and fiberglass fail-safes, VIPs empower architects to design thinner, brighter, and safer NZEB buildings in the world's harshest climates.
