From "Bulky Insulation" to "Precision Armor": The Technical Evolution of Removable Jackets

The Core Problem: Why "Bulky" is Failing in the Field

In modern Oil & Gas and MEP facilities, "thick" does not mean "better." Traditional mineral wool jackets—often referred to as "heavy quilts"—frequently fail due to moisture ingress, physical sagging, and space constraints. At Hebei Woqin, we advocate for a transition to "Precision Armor": ultra-thin, high-performance aerogel systems that focus on long-term reliability rather than just upfront cost.

I. Fabrication Efficiency: The "Utility Knife" Benchmark

One of the biggest hidden costs in insulation jacket manufacturing is specialized labor.

• Field Evidence: Unlike rigid boards or messy mineral wool, our SiO2 Aerogel blankets are engineered for high tensile strength (1255 kPa).

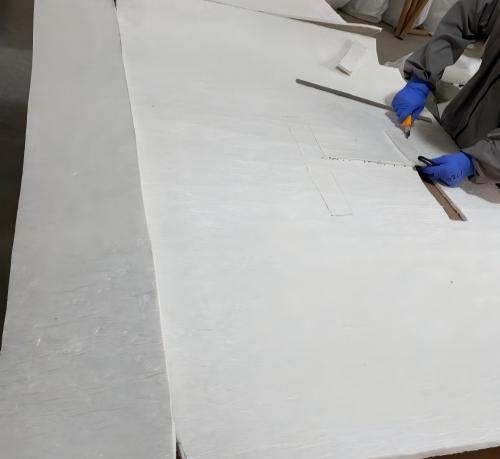

• The Workflow: As shown in the photo below, a technician can achieve complex, precise cuts using a standard utility knife. This eliminates the need for heavy cutting machinery and reduces fabrication time per jacket by approximately 40-50%.

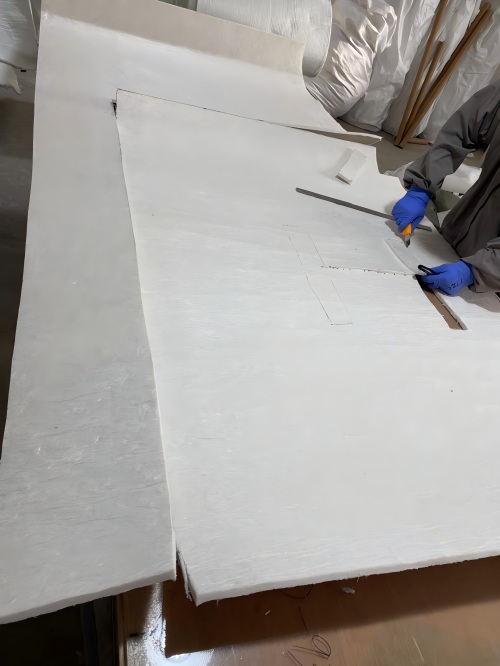

Caption: Precision cutting of Woqin Aerogel core material using standard hand tools.

II. Thermal Math: 10mm vs. 30mm

To maintain design rigor, we utilize a 1:3 replacement ratio.

• Performance Data: With a tested thermal conductivity of 0.020 W/(m·K) at 25°C, a 10mm Woqin blanket delivers equivalent thermal resistance to 30mm of high-density rock wool.

• Design Result: This allows for a slimmer profile, crucial for insulating tightly packed valve clusters where traditional 50mm blankets simply cannot fit without physical interference.

III. Material Stability: Solving the "Slumping" Issue

Traditional fiber-based fillers are prone to "slumping"—settling at the bottom of the jacket due to gravity and operational vibration.

• Vibration Test Result: Under GB/T 34336 standards (vibration mass loss test), our aerogel shows a mass loss rate of only 0.3%.

• Impact: This structural integrity ensures that the insulation remains uniform across the entire asset for its 20-year service life, preventing the "hot spots" often found at the top of sagging mineral wool jackets.

IV. Hydrophobicity: The Shield Against CUI

Corrosion Under Insulation (CUI) is a multi-billion dollar problem.

• Intrinsic Barrier: Our aerogel is not just surface-treated; it is inherently hydrophobic.

• Lab Validation: Tested at a 99.7% hydrophobic rate, our material ensures that moisture never reaches the pipe surface. By keeping the interface dry, you effectively remove the primary catalyst for CUI.

Caption: 66% thickness reduction while maintaining identical thermal resistance.

V. The ROI Comparison: Beyond the Material Price

While the square-meter cost of aerogel is higher than rock wool, the Total Cost of Ownership (TCO) favors aerogel in industrial settings:

• Installation: 50% labor saving due to easier handling and fitting.

• Maintenance: Removable jackets made with aerogel are easier to reinstall after inspections without damage.

• Case Estimate: For a standard refinery valve-insulation project, the ROI is typically realized within 18–24 months through combined energy savings and reduced maintenance cycles.

Final Action

Let the data speak for your project. We don't just sell rolls; we solve thermal challenges. Send us your CAD drawings for a specific valve or piping node, and our engineering team will provide you with a Free Fabrication Plan and an ROI Comparison Table against your current insulation method.

Contact our Engineering Lead.
