Superconducting Grid Insulation: Deep Cryogenic Aerogel

The Deep Cryogenic Revolution of Urban Energy Arteries: The Space Deadlock of Underground Superconducting Cables

Driven by surging demand from urban data centers, high-speed rail and mass electrification, Tokyo and Seoul are leading the global rollout of underground high-temperature superconducting (HTS) cables, which deliver 3–5x the transmission capacity of conventional copper lines within the same footprint. For TEPCO and KEPCO project leaders overseeing grid capacity upgrades, zero-resistance superconducting technology is no longer a laboratory concept — it is the only viable path to meeting megacity power demand without tearing up entire city blocks.

Yet from TEPCO’s Yokohama HTS demonstration project to KEPCO’s Jeju Island commercial transmission line, the single greatest deployment bottleneck is not the superconducting tape itself, but the bulky, rigid liquid nitrogen insulation system that surrounds it. HTS cables must operate continuously at -196°C submerged in flowing liquid nitrogen, but the dense, winding utility tunnels beneath Tokyo and Seoul were never designed for thick, inflexible cryogenic piping. What was once a secondary procurement decision has become the make-or-break factor for project approval, construction timeline and the long-term economic case for superconducting grids.

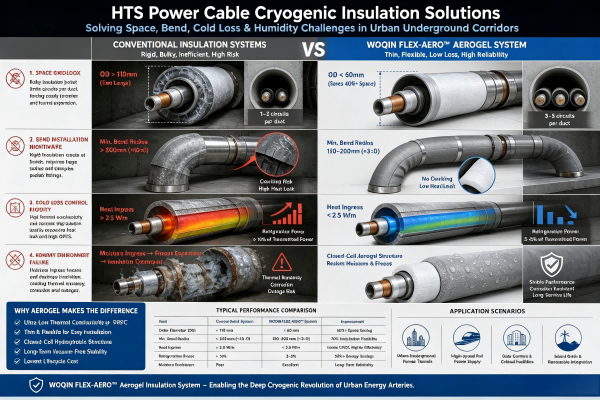

Core Pain Points of Conventional HTS Cryogenic Insulation Systems

1. Underground Corridor Space Gridlock – Bulky Insulation Jackets Block Deployment Paths

Utility tunnels beneath central Tokyo and Seoul are already saturated with power, telecom, water and sewage lines, leaving minimal cross-sectional margin for new infrastructure. Existing power duct banks typically have internal diameters of only 150–200mm. Conventional rigid vacuum-insulated pipe jackets with multi-layer radiation shields and stainless steel casings commonly exceed 110mm in outer diameter, limiting installations to just 1–2 circuits per duct and wasting the core capacity advantage of superconducting technology. Traditional foam and fibrous cryogenic insulation requires 50–100mm of thickness to meet liquid nitrogen performance targets, expanding overall jacket diameter so far that installation inside existing ducts becomes physically impossible.

The consequences are project-defining: high-capacity superconducting lines must be rerouted through less dense suburban corridors, increasing route length by 30% or more and driving exponential growth in civil works and material costs. Full tunnel expansion requires extensive road excavation, disrupting urban traffic and commercial activity and delaying project permitting and construction by 1–2 years.

2. Bend Installation Engineering Nightmare – Rigid Insulation Cracks at Every Corner

Urban underground utility networks are not straight. They feature numerous 90° elbows, S-shaped detours around legacy utilities and junction chamber transitions. Conventional rigid cryogenic insulation systems require a minimum bend radius of roughly 10x the pipe diameter — typically over 600mm — making them fundamentally incompatible with the tight turning radii of older city tunnel layouts.

Rigid foam insulation becomes even more brittle at deep cryogenic temperatures, cracking and delaminating completely when forced around curves. Prefabricated vacuum-insulated elbow fittings require precision field welding, with joint heat leakage 3–5x higher than straight sections. Uncontrolled thermal bridging at bends causes localized liquid nitrogen vaporization spikes that overload refrigeration systems.

Project teams are forced to add extra straight access shafts to accommodate rigid insulation geometry, reducing effective tunnel utilization and driving up construction complexity and cost. Inconsistent heat leakage also forces oversized refrigeration system sizing, raising both capital equipment expense and ongoing operational energy consumption.

3. Cold Loss Control Rigidity – Excessive Heat Leak Erodes Superconducting Economic Value

The core value proposition of superconducting transmission is near-zero electrical resistance and ultra-low line losses. That advantage is directly eroded by the energy consumption of the liquid nitrogen refrigeration system. Industry design standards target heat ingress below 2.5 W/m; once insulation failure drives heat leakage above this threshold, refrigeration power consumption climbs from 3–5% of transmitted power to over 10%, eliminating the economic benefit of superconducting technology entirely.

Conventional fibrous insulation materials see thermal conductivity rise significantly at -196°C cryogenic temperatures, delivering far higher heat leakage than their room-temperature ratings. Multi-layer vacuum insulation structures suffer gradual vacuum degradation after 3–5 years of buried service, increasing heat ingress by 40–60% and steadily raising refrigeration load year over year. Unresolved thermal bridging at joints and elbows creates uneven heat leakage distribution, causing unstable LN₂ circulation pressure and unreliable system operation.

The operational and financial impacts are significant: annual refrigeration operating costs can exceed budget by 50% or more over the project lifecycle. Severe vaporization spikes can also reduce subcooling margins and trigger superconducting tape quench events, causing grid protection shutdowns and power supply disruptions.

4. Underground Humidity Environment Failure – Moisture Freezing Causes Catastrophic Performance Collapse

Underground utility tunnels operate at constant high humidity, typically above 90% RH, with seasonal water immersion during heavy rain events. When conventional insulation jacketing develops even minor outer jacket damage, moisture rapidly infiltrates the insulation core and freezes solid on the cryogenic pipe surface, expanding volumetrically and shattering the insulation structure from the inside out.

Fibrous insulation materials see thermal conductivity spike by 2–3x after moisture absorption, losing effective cryogenic performance almost entirely. Rigid foam materials crack and delaminate as absorbed water freezes and expands, creating gaps between the insulation and pipe wall that enable convective air flow and further accelerate cold loss. Underground soil and moisture electrochemical corrosion also degrades metal outer jackets, reducing insulation system service life to only 8–10 years — far short of the 30-year design life required for power grid infrastructure.

Full insulation replacement requires full tunnel excavation and coordinated grid outage windows, creating extremely high maintenance costs and scheduling complexity. Repeated freeze-thaw cycling can also cause mechanical damage to the superconducting cable itself, including electrical insulation cracking and superconducting tape displacement.

5. Cryogenic Shrinkage Stress Damage – Thermal Cycling Fatigue Shatters Insulation Integrity

When superconducting cables cool from ambient temperature to their -196°C operating temperature, stainless steel inner pipes experience approximately 0.3% axial shrinkage — equal to roughly 3 meters of contraction per kilometer of line. Conventional rigid insulation is bonded directly to the pipe wall and cannot accommodate this displacement, resulting in widespread delamination and cracking after the very first cooldown cycle.

Fixed adhesive bonds create enormous shear stress during thermal contraction, causing immediate insulation fracture and detachment. Complex expansion joint structures are required at regular intervals, demanding extremely high installation precision and creating concentrated stress failure points. After repeated thermal cycles from startup and shutdown events, the gap between insulation and pipe wall widens progressively, and convective cold loss increases year over year.

Industry field data shows that up to 30% of rigid cryogenic insulation can suffer visible damage after initial cooldown commissioning, requiring extensive rework and delaying project go-live. Long-term thermal cycling fatigue causes steady performance degradation, making it impossible to meet the 30-year no-major-overhaul design requirement for power grid infrastructure.

6. Extremely Low Construction & Maintenance Efficiency – Rigid Prefabrication Slows Project Delivery

Underground construction in dense urban cores operates under extremely tight time windows, typically limited to overnight work shifts, with very confined working spaces. Conventional cryogenic insulation systems require large volumes of prefabricated components, field welding and multi-stage sealing inspection, resulting in very low installation rates that severely constrain project delivery schedules.

Prefabricated vacuum-insulated pipe sections require on-site joint welding and vacuum testing, with typical installation rates of only 10–15 meters per work shift. Rigid foam insulation requires on-site cutting, adhesive bonding and multi-layer jacketing, with highly variable installation quality at irregular joints that depends entirely on worker skill. Underground repair and maintenance requires full removal of the insulation assembly, with post-repair sealing performance rarely matching original factory specifications.

The operational impact is clear: project construction schedules extend by 40% or more, missing critical grid capacity upgrade windows and compromising urban power supply reliability. Maintenance outages are longer and more frequent, reducing overall grid availability.

Woqin S-Grade Deep Cryogenic Aerogel: The Game-Changer for Urban HTS Cable Insulation

Purpose-built for the extreme constraints of dense urban underground superconducting grids, Woqin’s S-grade deep cryogenic aerogel blanket resolves the core tradeoffs between insulation thickness, flexibility, cold loss control and long-term durability that have stalled HTS deployment in Tokyo and Seoul. Verified for continuous service down to -200°C, the inorganic nanoporous material delivers class-leading cryogenic thermal performance, mechanical resilience and installation efficiency across straight runs, curved sections and irregular joints.

1. Ultra-Thin Cryogenic Performance: Minimize Jacket Diameter, Maximize Corridor Capacity

S-grade aerogel blanket delivers industry-leading thermal conductivity at deep cryogenic temperatures, with premium formulations reaching the 0.010 W/(m·K) performance level at -165°C — roughly half that of cryogenic-grade PUR/PIR and one-quarter that of foam glass at equivalent temperatures. This order-of-magnitude advantage reduces required insulation thickness by more than 60% for equivalent cold loss performance, dramatically shrinking the overall outer diameter of the liquid nitrogen jacket assembly.

For a typical 66kV HTS cable assembly, replacing traditional 80–100mm PUR insulation with 30–40mm aerogel blanket reduces the overall jacket outer diameter from over 110mm to approximately 60–70mm, enabling installation inside existing 150mm duct banks that were previously inaccessible. Reclaimed cross-sectional space can be allocated to additional HTS circuit runs, boosting per-tunnel transmission capacity by 2–3x and unlocking the full capacity potential of superconducting technology in constrained downtown corridors. For greenfield projects, the reduced insulation footprint enables smaller tunnel diameters and lower overall civil construction costs.

2. Flexible Conformable Design: Navigate Tight Underground Bends Without Cracking

Unlike rigid vacuum and foam insulation systems that fail at curved sections, the flexible blanket structure of S-grade aerogel supports tight bending radii far smaller than rigid cryogenic insulation. The material retains structural toughness even at -196°C deep cryogenic temperatures, with no brittleness, cracking or delamination after repeated bending and thermal cycling.

It can be wrapped directly in place around elbows, S-detours, junction chamber transitions and irregular joint geometries, eliminating the need for custom prefabricated bend fittings and precision field welding. Conformal wrapping eliminates assembly gaps, removing the thermal bridge hotspots that cause localized vaporization spikes in traditional systems. The flexible format also allows the insulation to be installed concurrently with cable pulling, streamlining installation through winding utility tunnel layouts.

3. Stable Ultra-Low Heat Leakage: Protect the Economic Case for Superconducting Transmission

The nanoporous aerogel structure suppresses gaseous conduction and radiative heat transfer at the molecular level, delivering consistent low heat ingress along full cable runs that beats the industry standard design target of 2.5 W/m. Uniform, gap-free coverage eliminates localized thermal bridges, ensuring even liquid nitrogen vaporization rates and stable circulation pressure across the entire line.

Unlike multi-layer vacuum insulation that suffers 40–60% heat leakage increase after 3–5 years of buried service, S-grade aerogel maintains stable long-term performance with minimal thermal degradation over years of operation. This predictable, low-decay profile enables right-sized refrigeration system design, cutting both upfront capital equipment costs and ongoing operational energy expenses. By maintaining consistent subcooling margins, the insulation also reduces the risk of superconducting tape quench events and unplanned grid protection shutdowns.

4. Hydrophobic Corrosion Resistance: Withstand Long-Term Harsh Buried Service

Built on a pure inorganic nanoporous matrix, S-grade aerogel blanket delivers over 99% water repellency tested per GB/T 10299, maintaining stable thermal performance even if the outer protective jacketing sustains minor damage in damp underground tunnels. Unlike fibrous insulation that absorbs moisture and suffers 2–3x thermal conductivity spikes, the aerogel structure resists water infiltration and prevents internal ice formation, eliminating volumetric freeze-expansion that shatters rigid foam and fiber insulation systems from within.

The inert inorganic substrate is inherently immune to soil corrosion, electrochemical degradation and microbial growth, with a design service life aligned to 30-year power grid infrastructure standards. By forming a continuous moisture barrier around the cryogenic jacket, it also eliminates corrosion under insulation (CUI) risks to the stainless steel liquid nitrogen pipe, protecting cable asset integrity over decades of underground operation. This avoids the 8–10 year replacement cycle common with conventional cryogenic insulation, drastically reducing lifecycle excavation and outage costs.

5. Cryogenic Shrinkage Follow-Up: Thermal Cycling Fatigue Resistance

Unlike rigid bonded insulation that fractures under cooldown stress, the flexible wrapped structure of S-grade aerogel blanket moves synchronously with the pipe as it contracts, absorbing the 0.3% axial shrinkage — roughly 3 meters per kilometer of line — that occurs when cooling from ambient temperature to -196°C. No fixed adhesive bond is required, so no shear stress builds up during thermal cycles, eliminating the root cause of insulation delamination and cracking.

After repeated ambient-to-cryogenic thermal cycling, the insulation retains high structural integrity with minimal performance decay. This eliminates the industry-wide issue of widespread insulation damage during initial cooldown commissioning, cutting rework costs and accelerating project go-live. No complex expansion joint assemblies are required, simplifying system design and reducing precision installation demands, while supporting the long-term no-major-overhaul reliability requirement for utility-grade power infrastructure.

6. Streamlined Installation & Maintenance: Accelerate Urban Project Delivery

Supplied in lightweight roll format, S-grade aerogel blanket can be cut to size on site and wrapped directly in place, delivering significantly higher installation rates per shift than rigid vacuum-insulated pipe and prefabricated foam systems. Irregular joints, terminals and junction chamber transitions can be hand-wrapped without custom prefabricated parts, delivering consistent quality even in confined underground workspaces.

The modular wrapped structure also enables localized repair and maintenance. Insulation can be removed and replaced only at the affected section without stripping the full line, with post-repair performance matching original design specifications. This drastically reduces outage duration for inspection and repair work, a critical benefit for dense urban grids where downtime is tightly restricted and overnight work windows are narrow.

Take the Next Step: Request the HTS Cable LN₂ Insulation Slimming & Flexible Design Whitepaper

For superconducting grid project leaders at TEPCO, KEPCO and urban power utilities across Japan and Korea, the era of choosing between cryogenic performance and underground corridor space is over. Woqin’s S-grade deep cryogenic aerogel blanket unlocks high-capacity HTS deployment in existing cramped urban duct banks, delivering ultra-low cold loss, flexible bend capability and long-term buried service reliability.

Request your exclusive HTS Cable Liquid Nitrogen Insulation Optimization Whitepaper today:

The whitepaper includes detailed thickness-to-performance comparisons across conventional foam, vacuum and aerogel insulation systems, minimum bend radius design guidelines for curved tunnel sections, lifecycle cold loss decay modeling, and best practices for underground urban corridor installation. Our cryogenic thermal engineering team also provides project-specific thermal calculation, custom layout design and prototype validation support for live superconducting grid upgrade programs.

Contact the Woqin cryogenic power grid materials division today to request sample materials and full project documentation.
