Surviving -196°C: Aerogel Insulation for LNG and Cryogenic Piping in Southeast Asia

Southeast Asia’s extreme heat and 90% relative humidity create one of the harshest operating environments for LNG and cryogenic piping systems. Discover how flexible Woqin Aerogel Cryogenic Blankets eliminate thermal cracking, prevent frost heaving, reduce boil-off gas and save critical pipe rack space compared to traditional cellular glass and PIR foam.

Introduction: The 230°C Temperature Gradient Challenge

Designing liquefied natural gas (LNG) terminals and cryogenic gas facilities in Southeast Asia presents a uniquely severe engineering challenge. Inside the piping, process fluids range from LNG at -162°C down to liquid nitrogen at -196°C. Outside the pipe, ambient conditions across Singapore, Malaysia and Indonesia feature year-round temperatures of up to 35°C and relative humidity reaching 90%.

This staggering 230°C temperature differential acts as a continuous, unforgiving stress test on insulation systems. Under these extremes, traditional cold insulation materials such as cellular glass (CG) and polyisocyanurate (PIR) frequently fail, driving high maintenance costs, energy waste and safety hazards.

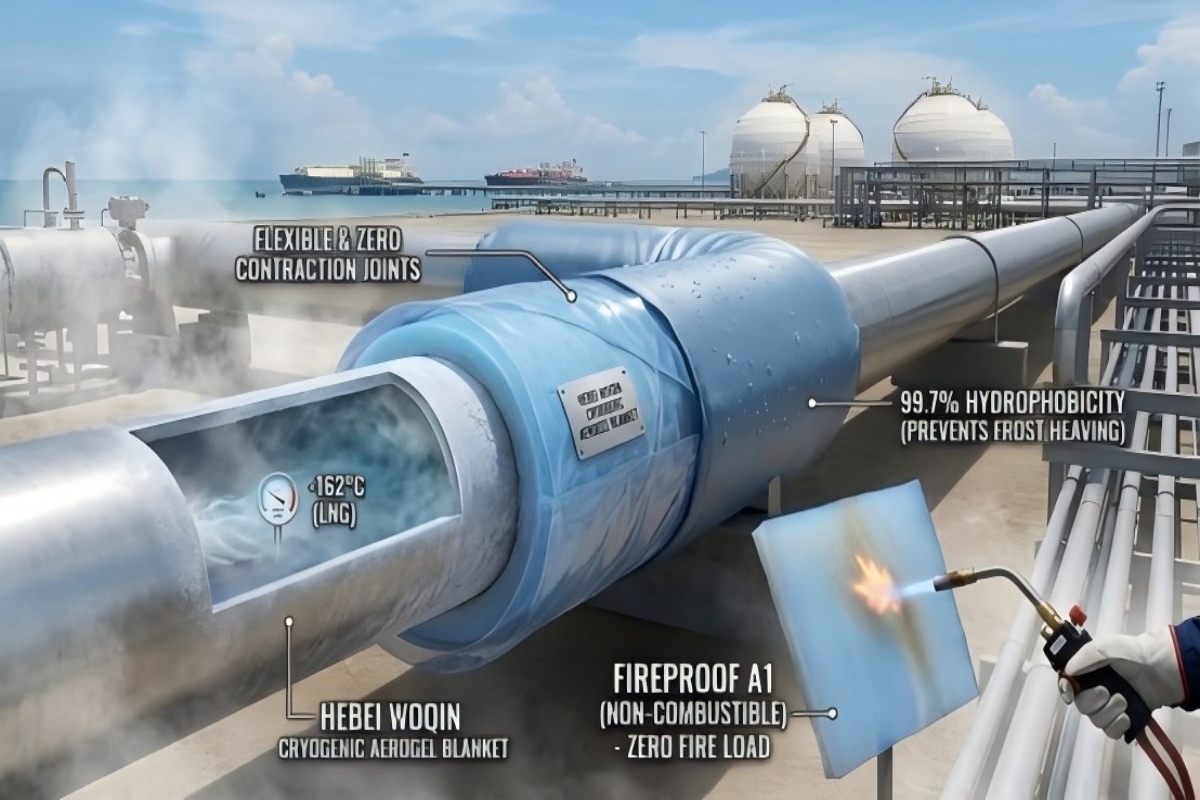

Woqin Aerogel Cryogenic Blankets are redefining safety, service life and efficiency standards for the Southeast Asian LNG cold chain. The case for aerogel over cellular glass and PIR rests on three pillars: mechanical integrity under thermal cycling, thermal economics including BOG and space utilization, and fire safety compliance. The following chapters examine each pillar in detail.

Chapter 1: Eliminating Thermal Cracking and Cool-Down Shock

The Traditional Limitation

Cellular glass is widely specified for cryogenic service, but it is an inherently rigid and brittle material. To prevent shattering under pipe movement and mechanical stress, engineers must design dedicated contraction joints at regular intervals, filled with flexible sealants. Over time, these joints degrade under thermal cycling and moisture exposure — typically within 5–8 years in typical tropical high-humidity service — becoming the primary failure points of the entire insulation system.

The Woqin Aerogel Solution

Woqin aerogel cryogenic blankets are inherently flexible. They act as a high-performance thermal jacket that absorbs mechanical stress and movement caused by thermal shock without damage. No dedicated contraction joints are required, and the material conforms seamlessly around elbows, valves and straight pipe runs, delivering excellent structural integrity without cracking under repeated thermal cycling.

It also resolves a long-standing pain point on cryogenic pipe supports and saddles. Traditional rigid insulation often cracks or crushes under structural load at support points, creating concentrated cold bridges that trigger localized icing and CUI. Woqin aerogel blankets conform tightly around pipe supports while retaining stable thermal performance under design compressive stress, effectively interrupting cold bridging and extending service life at these high-failure locations.

Chapter 2: Defeating Frost Heaving and Jacketing Failure

The Traditional Limitation

In Southeast Asia’s tropical climate, water vapor is the invisible enemy of cryogenic systems. If a traditional PIR or cellular glass system develops even a hairline crack, pervasive ambient moisture immediately infiltrates the insulation layer.

At -162°C pipe surface temperatures, infiltrated water vapor freezes instantly into solid ice. Because water expands by approximately 9% when frozen, it generates powerful outward pressure known as frost heaving. This force can rupture outer metal jacketing, expose the pipe to corrosion under insulation (CUI) and trigger total thermal failure.

The Woqin Aerogel Solution

When installed with a properly specified cryogenic vapor barrier system, this integral hydrophobicity works together to block moisture migration toward the cold pipe surface, breaking the cycle of ice formation, jacketing rupture and progressive system degradation.

Chapter 3: BOG Reduction and Pipe Rack Space Optimization

The Operational Reality

For LNG terminal operators, inadequate insulation translates directly to financial loss. Heat ingress causes liquid product to vaporize into boil-off gas (BOG), wasting valuable product and increasing internal pipe pressure and compression load. Conventional thick rigid insulation also occupies excessive pipe rack space, limiting layout flexibility and increasing overall facility CAPEX.

The Woqin Aerogel Solution

With a thermal conductivity of 0.020 W/(m·K) at room temperature — dropping to 0.010 W/(m·K) at -165°C under laboratory testing — Woqin aerogel cryogenic blankets provide a highly efficient thermal barrier. It minimizes heat leak across the insulation envelope and keeps BOG rates consistently low.

Most importantly for EPC design teams, Woqin aerogel cryogenic blankets achieve this performance at a fraction of the thickness required by conventional materials. For equivalent surface condensation control, an Woqin aerogel cryogenic blanket system typically requires only 1/2 to 1/3 the thickness of a cellular glass system.

On space-constrained refinery and terminal sites such as Jurong Island in Singapore or Bintulu in Malaysia, thinner insulation allows tighter pipe spacing on pipe racks, freeing up to 30% more linear capacity for additional piping runs. This translates directly to measurable CAPEX savings on steel structures and overall facility footprint.

Chapter 4: The Cryogenic and Fire Safety Paradox Solved

The Traditional Limitation

Organic foams such as PIR provide reasonable cold insulation performance but are combustible. Even with fire-retardant additives, they typically achieve only a Class B1 rating, contributing to fire load in the event of a facility fire. This creates a critical safety dilemma for LNG facilities, which require both reliable cryogenic insulation and passive fire protection.

The Woqin Aerogel Solution

Aerogel is an inorganic, silica-based nanomaterial. Tested in accordance with GB 8624-2012 and GB/T 5464 standards, Woqin Aerogel Blankets achieve the highest Class A1 non-combustible fire rating, with 0-second sustained flaming time and minimal mass loss under direct flame exposure.

Woqin aerogel cryogenic blankets are one of the few industrial insulation materials that simultaneously delivers deep cryogenic thermal performance and uncompromised passive fire protection (PFP), making it uniquely suited for high-hazard LNG and petrochemical facilities.

Conclusion: Upgrade Your Cryogenic Insulation Strategy

Installing insulation on cryogenic piping is more than a construction scope item — it is a long-term asset reliability decision. Woqin aerogel cryogenic blankets accelerate installation by eliminating custom contraction joint fabrication, resist frost heaving failure, reduce BOG losses and deliver Class A1 fire safety in a single material system.

If you are designing or upgrading an LNG terminal, air separation unit or ethylene plant across Singapore, Malaysia or Indonesia, there is no need to accept the thermal cracking, moisture intrusion and space penalties of outdated rigid insulation.

Backed by Hebei Woqin’s full engineering support, including cryogenic thermal calculations, custom thickness design and site application guidance, our team delivers tailored solutions optimized for tropical operating conditions.

To request the full cryogenic datasheet, project-specific thickness calculations or an engineering sample kit, contact our thermal engineering team directly.
