Feb 15, 2026
Whether upgrading a Victorian heritage home in London or retrofitting a high-rise luxury apartment in Riyadh, architects face the same "Space Penalty."
To meet modern energy standards (such as the UK Part L target of 0.30 W/m²K), traditional materials like Mineral Wool require a thickness of 100mm to 120mm.
In Europe: This destroys historical cornices, skirting boards, and window reveals.
In the Middle East: This consumes high-value floor area in regions where "Space is Money."
The market demands a solution that provides thermal protection without the bulk.

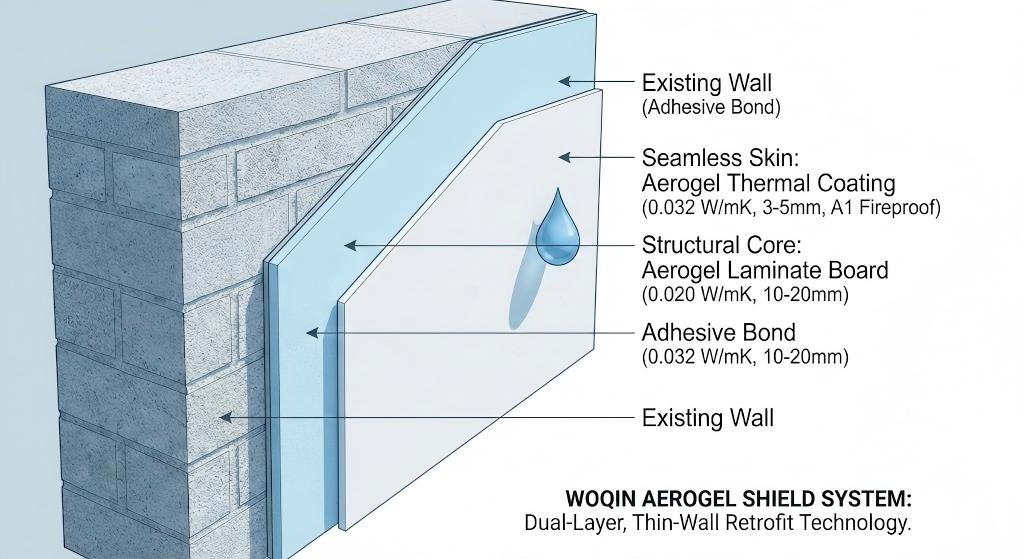

We do not simply sell insulation boards; we engineer "Thermal Envelopes."Drawing inspiration from Passive House principles, the Woqin Aerogel Shield System is a dual-layer approach designed to maximize performance in minimal thickness (approx. 35mm).
Layer 1: The Structural Core (Aerogel Laminate Board)
Verified Data: Thermal Conductivity 0.020 W/(m·K) (Tested at 25°C).
Function: Acting as the primary thermal barrier, this 10mm-20mm layer provides the equivalent resistance of traditional materials three times its thickness.
Layer 2: The Seamless Skin (Aerogel Thermal Coating)
Verified Data: Thermal Conductivity 0.032 W/(m·K); Bond Strength 1.1 MPa.
Function: Applied as a 3mm-5mm finish, this coating seals all board joints, screw holes, and irregular corners, creating a "Zero Thermal Bridge" surface.
Does a 35mm system work? The physics speaks for itself.
Compliance with Regulations:For retrofit projects where space is restricted, building codes (such as UK Part L1B) set a "Threshold Value" of 0.70 W/m²K. The Woqin 35mm System achieves a U-value of 0.62 W/m²K on a standard solid brick wall. This makes it a fully compliant solution for space-critical projects where 100mm of insulation is technically unfeasible.
The "Airtightness Bonus":While the theoretical R-value is comparable to ~50mm of mineral wool, the real-world performance is superior. Mineral wool often suffers from "Thermal Bypass" due to air gaps and installation sagging. Our wet-applied Aerogel Coating creates a hermetic seal, eliminating air convection and boosting the effective thermal efficiency to rival 60mm+ systems.
Mold requires two things to grow: Liquid Water and A Void (Air Gap). Traditional dry-lining often leaves an air gap behind the board where condensation pools. The Woqin System eliminates this risk entirely:
Zero Air Gap: The high-adhesion coating (1.1 MPa) and direct-bond installation leave no space for condensation to accumulate.

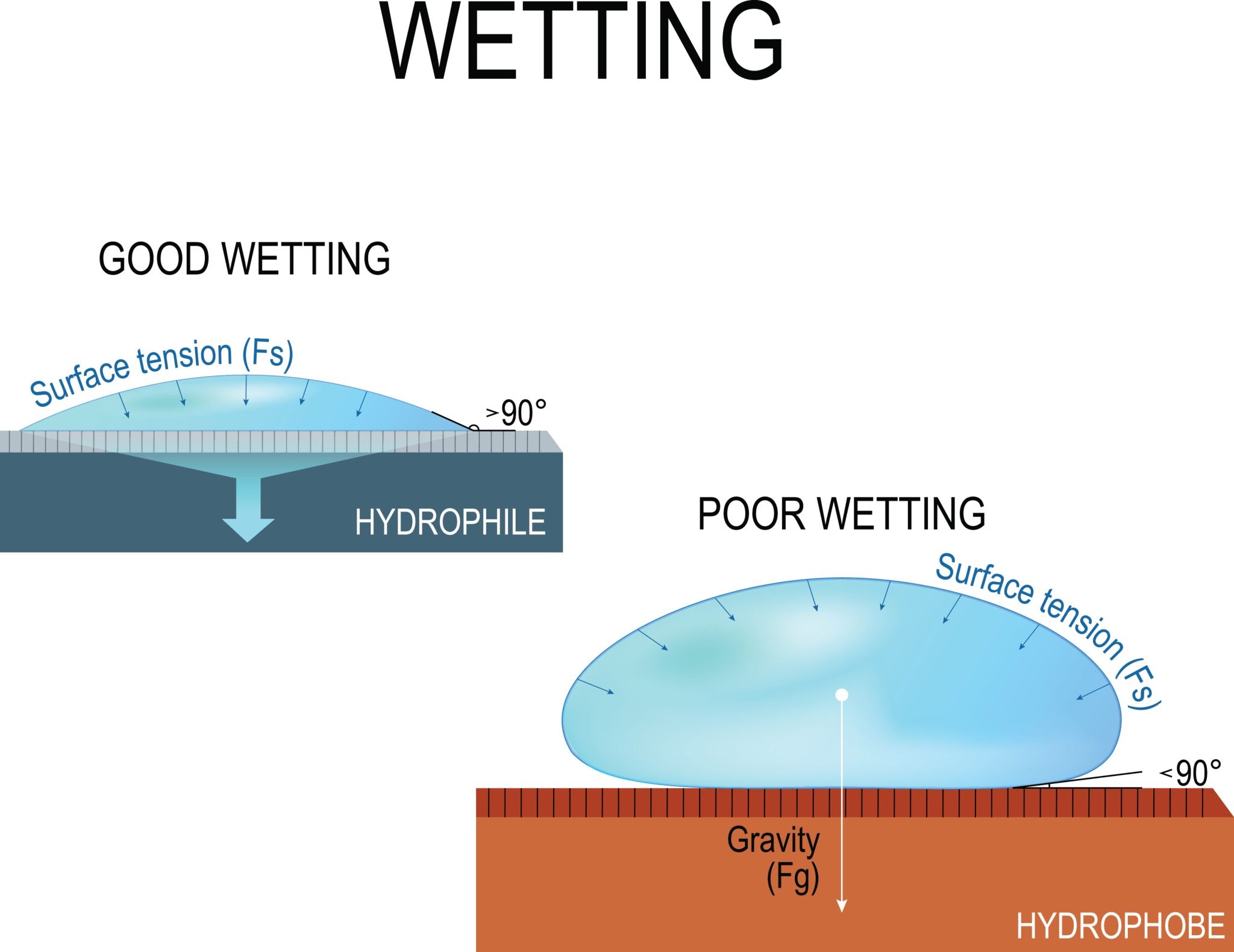

Hydrophobic Core: Our Aerogel Blanket is 99.7% Hydrophobic (Verified by CTC). Even if the external wall leaks, the insulation will not absorb water or degrade.
Vapor Open: The system allows the wall to "breathe," letting trapped structural moisture escape naturally without rotting the brickwork.
In high-value real estate, the cost of insulation material is secondary to the value of the space it saves.
The Real Estate Logic:In cities like London, Paris, or Dubai, where property prices exceed $15,000/m², saving 60mm of thickness makes massive financial sense.(Calculation: On 10 linear meters of external wall, saving 60mm thickness reclaims 0.6m² of prime floor area, preserving ~$9,000 in property value.)
The Labor Logic:The ultra-thin profile means radiators often don't need moving, and window reveals don't need rebuilding. This reduces installation time by up to 50%, offsetting the premium material cost through labor savings.
Our claims are backed by rigorous third-party testing from the China Building Materials Test & Certification Group (CTC).
| Parameter | Woqin Aerogel Blanket | Woqin Aerogel Coating | Standard Requirement |
| Thermal Conductivity | 0.020 W/(m·K) | 0.032 W/(m·K) | Industry Leading |
| Hydrophobic Rate | 99.7% | 96h No Abnormality | ≥ 98.0% |
| Fire Rating | Class A (A1) | Class A (A1) | Non-combustible |
| Bond Strength | N/A | 1.1 MPa | ≥ 0.6 MPa |
Conclusion:
Stop compromising between living space and energy efficiency. Upgrade your retrofit strategy with the industrial-grade science of Woqin.
