Maximizing Cruise Ship Cabins: Ultra-Thin Aerogel Acoustic Insulation for Ro-Ro & Luxury Cruise Vessels

The Space Economics of Luxury Cruise Ship Design: Why Every Millimeter Matters

In luxury Ro-Ro passenger ships and cruise vessels, deck height is a rigid parameter locked during the FEED (Front End Engineering Design) phase. Every additional 10mm of engine room insulation directly reduces upper cabin net height by 10mm. Maintaining cabin height by raising the deck increases steel consumption, elevates the vessel's center of gravity, reduces stability margins, and drives non-linear increases in construction costs.

This creates a brutal design trade-off that shipyards and interior designers face on every project: accept compressed cabin heights that diminish the luxury experience, or incur the structural and financial penalties of raising the entire deck.

Woqin ultra-thin aerogel acoustic and thermal insulation blanket resolves this tension at its root. At only 10-15mm thickness, it replaces traditional 50-100mm rock wool plus fireboard composite systems — a thickness reduction exceeding 70%. The liberated space is immediately convertible into additional sellable cabins, expanded VIP suite dimensions, and more generous public areas. For shipowners, this is not a material substitution. It is a direct revenue uplift delivered through intelligent thermal design.

How Traditional Insulation Undermines Cabin Space, Acoustic Comfort, and Long-Term Reliability

Traditional rock wool composite systems, while capable of meeting basic A-60 fire and acoustic requirements, impose structural compromises that cascade upward through every deck. These compromises are not localized to the engine room — they erode revenue potential and passenger satisfaction across cabins, public spaces, and service systems.

Engine Room Top Deck and Upper Cabin Separation — The Root Constraint

The engine room is the primary source of heat, vibration, and low-frequency noise. Insulating the deck between the engine room and the first passenger deck demands the thickest insulation layer on the vessel. At 50-100mm for the rock wool plus fireboard composite, this single interface consumes the largest share of vertical space.

Compounding the problem, continuous diesel engine vibration causes rock wool fibers to fracture, powder, and settle over time. The insulation layer literally sinks, creating thermal bridges and noise leakage paths that did not exist at delivery. Repairs require stripping interior finishes from occupied cabins — a process so disruptive that shipowners routinely defer maintenance until guest complaints become overwhelming.

Cabin Partition Walls — The Revenue Ceiling

Between adjacent cabins, insulation must deliver simultaneous thermal, acoustic, and fire performance. The thickness of traditional multi-layer partition assemblies — rock wool sandwiched between fire-rated panels — directly consumes interior cabin width. Across a row of cabins, the cumulative thickness of these partitions dictates how many cabins can fit within the fixed beam of the hull. Every millimeter of partition thickness is a millimeter subtracted from sellable cabin area.

Furthermore, traditional materials exhibit uneven acoustic performance across the frequency spectrum. Low-frequency noise — conversation, television, bathroom plumbing — penetrates standard partitions with minimal attenuation. Inter-cabin noise consistently ranks among the top three guest complaints on luxury cruise vessels, directly impacting repeat booking rates.

Public Function Zones and Specialty Spaces — The Experience Deficit

Galleys, laundries, and equipment rooms generate concentrated heat and noise adjacent to restaurants, theaters, spas, and retail arcades. Traditional insulation's bulk compresses these premium public spaces, reducing the square meterage that defines the passenger experience. On side-shell bulkheads and observation areas, thick insulation layers push interior walls inward, stealing space from window-adjacent seating — the highest-value real estate on any cruise vessel. In high-humidity marine environments, rock wool also absorbs moisture, creating conditions for mold growth and musty odors that are unacceptable in premium hospitality settings.

HVAC Ductwork and Service Piping — The Hidden Headroom Thief

Overhead HVAC ducts, chilled water lines, and steam piping all require insulation within the ceiling void. Traditional rock wool plus aluminum foil wrapping adds substantial bulk to each service run. The accumulated volume of insulated ductwork and piping consumes ceiling void space that should be reserved for cabin headroom. Airflow-induced vibration within ducts, coupled with rigid insulation materials, transmits mechanical noise directly into cabins — a subtle but persistent disturbance that affects sleep quality. In marine humidity, water absorption by rock wool degrades thermal performance and creates conditions for bacterial growth within the air handling system.

A-Class Fire Divisions — Compliance at the Cost of Capacity

SOLAS-compliant A-60 fire divisions are mandatory throughout the vessel. Traditional solutions stack multiple layers of high-density rock wool and fire-rated boards to achieve the required integrity and insulation. This multi-layer approach amplifies the thickness penalty at every fire boundary. At pipe and cable penetrations, door frames, and irregular structural nodes, the rigid nature of conventional fire boards creates inevitable gaps — fire integrity weak points that require additional sealant systems and ongoing inspection.

Maintenance and Lifecycle Operations — The Hidden Cost Multiplier

The 3-5 year service life of rock wool insulation under sustained marine vibration creates a recurring maintenance burden. Each replacement cycle requires stripping interior finishes and furnishings from revenue-generating cabins, removing degraded insulation in confined overhead and bulkhead spaces, installing new multi-layer systems, and restoring the interior fit-out. For a cruise vessel, a single day of cabin unavailability represents thousands of dollars in lost revenue. Fiber shedding from degraded rock wool also contaminates HVAC systems, increases cleaning frequency, and degrades the premium cabin environment.

Vessel Stability and Design Margin — The Engineering Bottom Line

The cumulative weight of traditional insulation systems across all zones — engine room, cabin partitions, public areas, and ductwork — significantly contributes to topside mass. This weight raises the vessel's center of gravity, tightens stability margins, and may require additional ballast or structural reinforcement. It also consumes the weight allowance that could otherwise be allocated to premium interior finishes, expanded spa facilities, or additional upper-deck suites. Once the vessel is built, almost no margin remains for future upgrades.

Woqin Ultra-Thin Aerogel Blanket: A Zone-by-Zone Space Liberation Strategy

Woqin aerogel blanket achieves system-level thermal, acoustic, and fire performance with just 10-15mm thickness — a reduction exceeding 70% versus traditional 50-100mm rock wool composite systems. The following zone-by-zone analysis demonstrates how this single material transforms spatial constraints into revenue opportunities across every deck.

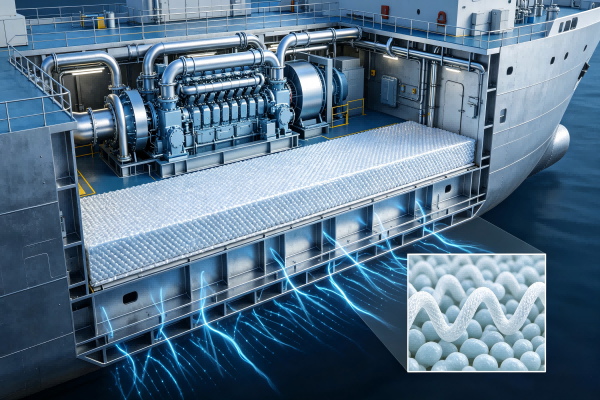

Engine Room Top Deck and Cabin Separation — Breaking the Vertical Constraint

At only 10-15mm, Woqin aerogel blanket installed on the engine room top deck immediately liberates 35-85mm of vertical height compared to traditional rock wool systems. This recovered space can be allocated directly to upper-deck cabin headroom — transforming what would have been constrained, low-ceiling cabins into open, luxury-height staterooms. Alternatively, the space can be banked as ceiling void depth for premium lighting, indirect cove systems, and concealed HVAC ducting that define the luxury cruise aesthetic.

The flexible, fiber-reinforced matrix resists the powdering, sagging, and settling that plague rock wool under continuous vibration. With a vibration mass loss of only 0.3% (GB/T 34336), the blanket maintains its installed thickness, thermal continuity, and acoustic integrity across the vessel's entire service life. No mid-life insulation replacement is required — eliminating the need to strip and rebuild finished cabins and preserving revenue continuity for shipowners.

Cabin Partition Walls — Converting Wall Thickness into Sellable Width

Woqin aerogel blanket can be integrated into partition wall assemblies, reducing overall wall thickness by 60% or more compared to traditional rock wool plus fireboard systems. Across a row of cabins, this recovered width can be aggregated to add an additional cabin, expand every cabin equally, or redistribute space to create wider premium suites at corridor ends.

The superior acoustic performance — 10mm achieves 26.4 dB sound attenuation (ISO 10534-2 impedance tube test, comparable to 45mm mineral wool at one-quarter the thickness) — directly addresses inter-cabin noise complaints. The nanoporous silica structure provides consistent attenuation across the frequency spectrum, including the low-frequency range where traditional rock wool underperforms.

Public Function Zones and Specialty Spaces — Expanding the Guest Experience

Between galleys and dining rooms, laundries and spa facilities, the blanket's ultra-thin profile expands usable public square meterage. On side-shell bulkheads, the reduced insulation thickness brings interior walls closer to the hull, preserving window-adjacent seating and observation areas — the defining feature of premium cruise experiences. The material's hydrophobic nanoporous structure (≥99.7% hydrophobic rate) prevents moisture absorption, mold growth, and odor development, maintaining the pristine environment demanded by luxury hospitality standards. Its flexible blanket format conforms tightly to curved bulkheads, domed ceilings, and irregular architectural features, preserving the design freedom that defines signature cruise vessel interiors.

HVAC Ductwork and Service Piping — Recovering Ceiling Void Height

Wrapping HVAC ducts and service piping with ultra-thin aerogel blanket reduces insulated duct diameter by up to 60% compared to rock wool alternatives. The recovered ceiling void space can be reallocated to increase cabin headroom — a premium feature that directly enhances passenger comfort. The material's inherent damping properties suppress airflow-induced vibration and structure-borne noise transmission, eliminating the subtle mechanical hum that disturbs sleep quality in cabins adjacent to duct runs. In marine humidity, the closed nanoporous structure resists water absorption, maintaining stable thermal performance without creating conditions for bacterial growth — fully aligned with cruise vessel HVAC hygiene standards.

A-Class Fire Divisions — Achieving Compliance Without the Bulk

Woqin aerogel blanket is inherently Class A1 non-combustible (GB 8624 / EN 13501-1). In IMO 2010 FTP Code testing, it demonstrates a furnace temperature rise of only 1.3°C — far below the 30°C threshold. When integrated with professional surface protection systems, it supports IMO A-60 fire division requirements, delivering fully compliant fire safety performance with far thinner overall system thickness than traditional rock wool composite solutions.

The flexible blanket format eliminates the fire integrity gaps that rigid fire boards create at pipe penetrations, cable transits, and irregular structural nodes — providing seamless, joint-free fire protection at the vessel's most vulnerable points. It is CCS (China Classification Society) approved for marine applications, 100% asbestos-free, and fully REACH/RoHS compliant. In a fire at sea, the pure inorganic silica matrix produces minimal smoke and no toxic gas emissions — a critical safety advantage in enclosed passenger vessel environments.

Maintenance and Lifecycle Operations — Eliminating the Replacement Cycle

With a service life 3-5 times that of traditional rock wool under sustained marine vibration, Woqin aerogel blanket eliminates the recurring cabin strip-and-rebuild cycle that drives rock wool's hidden ownership cost. The material generates no fibrous dust or particulate shedding, protecting HVAC cleanliness, reducing housekeeping frequency, and maintaining the premium cabin air quality expected by luxury passengers. For shipowners operating on tight deployment schedules, the elimination of mid-life insulation replacement across hundreds of cabins represents a direct and substantial OPEX reduction.

Vessel Stability and Design Margin — Building in Future Capacity

Full Lifecycle Value: From First Steel to Final Voyage

Design and Construction Phase

Operational Phase

Commercial Return

Conclusion and Call to Action
