Nuclear Power Insulation: Radiation-Resistant Aerogel Shields

The Nuclear Thermal Shield Dilemma: A Critical Test for Japan and Korea’s Fleets

As Japan restarts and extends its reactor fleet under post-Fukushima safety standards, and Korea solidifies its position as a global nuclear export leader through KHNP, both nations face an underrecognized engineering bottleneck inside containment: thermal insulation durability under extreme radiation. For Toshiba, Mitsubishi Heavy Industries and KHNP material engineers, insulation choice is no longer a secondary procurement item — it directly determines reactor safety, load factor and life-extension eligibility, amid the dual industry shifts of SMR compact design and 60-year license renewal.

Pain Point 1: Radiation-Coupled Degradation – Silent Structural Failure and Hidden CUI

Inside high-dose zones around reactor vessels and hot leg piping, cumulative gamma dose can exceed 1 MGy within a single 10-year operating cycle, and far surpass that over a 60-year service life.

Traditional mineral wool, ceramic fiber and organic-bonded insulation rely on polymer binders and fibrous matrices that break down under sustained cobalt-60 gamma radiation. At cumulative doses of 500 kGy to 1 MGy, most organic components lose over 50% of their tensile strength, turning brittle, cracking and eventually pulverizing; fibrous blankets suffer binder degradation, layer separation and settling, creating uninsulated thermal bridges at the top of cavities and dead weight at the bottom. The combined effect of radiation, high temperature and oxygen accelerates this decay beyond standard accelerated test predictions, creating major uncertainty for life-extension safety reviews.

Worse, radiation-damaged insulation absorbs far more moisture in humid containment and underground piping zones. Gamma radiation ionizes trapped water to generate oxidative free radicals, accelerating Corrosion Under Insulation (CUI) and raising stress corrosion cracking (SCC) risk for austenitic stainless steel piping. Since inspection requires removal of radioactive insulation in high-dose areas, hidden CUI is a high-priority structural integrity concern for both Japan’s NRA and Korea’s KINS aging management programs.

Pain Point 2: Spatial Congestion – The Thickness Bottleneck for SMRs and Life Extension

Nuclear containment interiors are among the most spatially congested industrial environments on earth, and insulation thickness has become a hard geometric constraint for both new build and retrofit projects.

For SMR programs at KHNP and Japanese heavy industry manufacturers, compactness is a core value proposition. Tightly integrated reactor assemblies leave only narrow radial gaps between hot piping and surrounding shielding. Conventional insulation requires 150–200 mm of thickness to meet target R-values, forcing designers to either expand containment diameter (driving nonlinear cost increases in civil works and shielding) or downgrade thermal performance. The problem is amplified at complex geometries like reactor vessel heads, where rigid thick insulation cannot conform, leaving bare-metal hot spots.

For aging fleet life extension, the constraint works in reverse: as existing insulation degrades, there is no redundant space to add supplementary layers to restore performance. Operators face a regulatory dead end: performance no longer meets standards, but thicker conventional insulation will not fit within fixed piping support, cable tray and walkway layouts, delaying or derailing license renewal approval.

Pain Point 3: Operations, Waste and Export Qualification – Triple Secondary Costs

Beneath thermal and spatial issues lie three systemic operational and compliance risks that erode long-term economics and competitiveness.

First, pulverized insulation creates foreign object debris (FOD) that violates ISO 23466 nuclear insulation standards. Airborne fibers and dust can clog coolant filters, jam valve packing, distort instrument signals and degrade electrical connector performance — a top-tier safety priority in post-Fukushima regulatory frameworks.

Second, short service life drives massive radioactive waste and outage costs. Traditional nuclear insulation lasts only 10–15 years, requiring 3–4 full replacement cycles over a 60-year license. Each replacement requires planned outages, specialized radiological demolition and expensive low-level waste disposal, with lost generation revenue adding an even larger financial penalty.

Third, missing long-term radiation aging data weakens export competitiveness. Most conventional insulation lacks validated performance data at doses corresponding to 40–60 years of operation, forcing conservative design margins and complicating environmental qualification (EQ) for international regulatory reviews.

The Woqin Solution: Nuclear-Grade Inorganic Aerogel Blanket

1. Radiation-Hardened Matrix: Stable Through 2.64×10⁶ Gy Co-60 Gamma Exposure

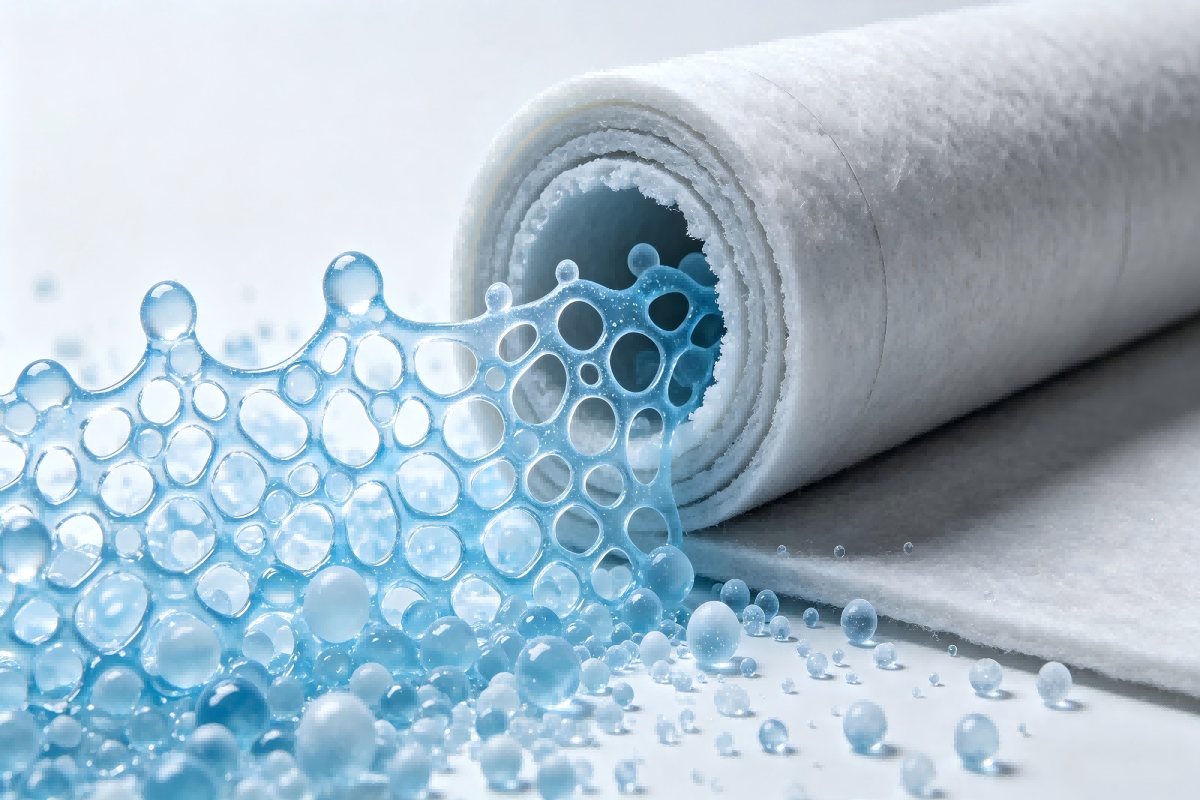

Built on an all-inorganic silica matrix, Woqin’s aerogel blanket is validated by standardized cobalt-60 gamma testing at a cumulative dose of 2.64×10⁶ Gy, with zero cracking, zero pulverization and zero dimensional deformation, and no measurable thermal conductivity degradation post-exposure. Its ≥99.7% hydrophobic structure also repels water even if outer jacketing fails, breaking the CUI cycle and reducing high-dose inspection frequency.

2. Ultra-Thin Thermal Resistance: Unlock Spatial Constraints

Delivering equivalent R-value at just 1/3 to 1/5 the thickness of conventional mineral wool and ceramic fiber, Woqin’s aerogel blanket resolves the core geometric bottleneck. For SMRs, it enables full thermal coverage within existing radial clearance envelopes without expanding containment size, and conforms seamlessly to complex valve and vessel head geometries. For life-extension projects, it restores or upgrades thermal performance within the original installation footprint, with no rework to surrounding piping supports or cable trays.

3. 60-Year Maintenance-Free Service: Eliminate FOD, Waste and Outage Risk

As a monolithic, fiber-reinforced inorganic blanket, the material does not powder, shed fibers or settle under long-term radiation, vibration and thermal cycling, fully meeting ISO 23466 particulate control requirements. With a service life aligned to 40–60 year reactor design lifespans, it eliminates mid-cycle replacement, reduces radioactive waste generation, cuts collective personnel radiation exposure and avoids extended outage revenue losses — delivering far lower total cost of ownership than conventional insulation.

4. Validated Test Data: Strengthen Qualification and Export Competitiveness

Woqin provides full traceable third-party test documentation for radiation aging, thermal performance, fire resistance and hydrophobicity, directly supporting environmental qualification and regulatory safety reviews. The complete Co-60 gamma aging dataset can be integrated into license renewal submissions and export bid packages, strengthening full-lifecycle value propositions for KHNP export projects and Japanese OEM global supply offerings. The Class A1 non-combustible inorganic matrix also enhances passive safety under design-basis accident conditions including LOCA scenarios, with no toxic outgassing.

Take the Next Step: Access Full Radiation Aging Test Data

The era of accepting short insulation service life, hidden CUI risk and spatial design tradeoffs in nuclear thermal management is over. For material engineering teams at KHNP, Toshiba, Mitsubishi Heavy Industries and nuclear EPCs, Woqin’s radiation-grade aerogel blanket delivers a proven, data-backed solution built for the full 60-year lifecycle of modern and aging reactor fleets.

The package includes authoritative Co-60 gamma radiation long-term aging test reports, thermal performance curves across operating temperature ranges, installation guidelines for containment piping and equipment, and case references for high-dose nuclear service environments. Our nuclear materials engineering team can also support project-specific thermal calculation and layout optimization for SMR new builds and life extension retrofits.

Contact the Hebei Woqin nuclear materials division today to request sample materials and full qualification documentation.
