Defeating Vibration and Deadweight: CCS-Certified Aerogel for Marine Insulation

Land-based insulation specifications cannot withstand the harsh realities of open-ocean operating conditions. In ship engine rooms, continuous three-dimensional vibration, high-salt atmospheres and severe space constraints cause traditional rock wool to slump, degrade and create elevated fire hazards. Discover how CCS-certified Woqin Silica Aerogel Blankets improve marine engineering reliability by minimizing vibration-induced slumping, reducing vessel deadweight and delivering durable hydrophobic protection against saltwater corrosion under insulation and oil-related fire risks.

Introduction: The Maritime Insulation Challenge for Southeast Asia Hubs

While high-performance aerogel solutions have addressed extreme humidity challenges for HVAC and data center facilities across Southeast Asia, the region — home to major maritime hubs in Singapore and Malaysia — also hosts some of the world’s busiest shipyards and repair docks. Vessels built and retrofitted here sail global routes, facing dynamic operating conditions far more severe than most land-based facilities.

Inside vessel engine rooms, thermal insulation systems are subjected to relentless stress: high-frequency vibration from large diesel engines, hull flexing under heavy swells, salt-laden humid air and extreme space constraints. For decades, shipbuilders have relied on traditional mineral wool and rock wool for high-temperature steam and exhaust piping. Under maritime conditions, these materials consistently exhibit performance limitations that drive energy loss, corrosion damage and fire safety risks. This is why forward-looking marine operators are adopting Woqin Aerogel Blankets as a higher-reliability thermal protection solution.

Chapter 1: Minimizing Insulation Slumping Under Continuous Vibration

The Traditional Limitation

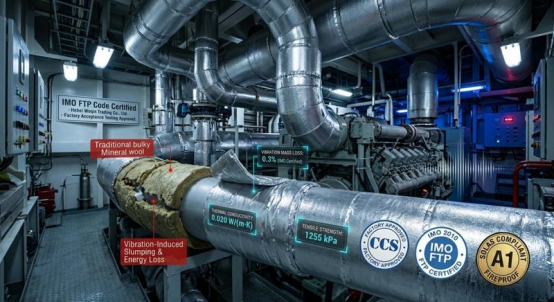

A vessel is a constantly moving, vibrating structure. When traditional rock wool is exposed to 24/7 high-frequency vibration from engines and propeller shafts, brittle mineral fibers gradually break down and pulverize. Over time, insulation material settles to the bottom of pipe runs — a phenomenon known as insulation slumping. This leaves the upper surface of high-temperature piping partially uninsulated, radiating excess heat into the engine room and reducing thermal efficiency.

The Woqin Aerogel Solution

Woqin aerogel blankets are built with a flexible, reinforced fiber matrix engineered to absorb kinetic energy and maintain structural integrity under sustained vibration.

Tested in accordance with GB/T 34336 standards, Woqin aerogel blankets record a vibration mass loss rate of just 0.3%, well below the 1.0% common industry threshold. With transverse tensile strength of 1255 kPa and longitudinal tensile strength of 414 kPa under laboratory testing, the material resists tearing, crushing and compression during tight installation and routine maintenance access. Structural performance remains stable through long-term service in heavy-sea conditions, effectively avoiding insulation hollowing, heat leakage and premature replacement caused by vibration aging.

Chapter 2: Reducing Saltwater CUI and Oil-Related Fire Risks

The Traditional Limitation

Two of the most critical concerns for marine chief engineers are engine room fire hazards and corrosion under insulation (CUI). Traditional rock wool acts like a porous sponge. When small hydraulic oil or fuel leaks occur in the engine room, the insulation absorbs and retains the oil. When oil-saturated insulation comes into contact with high-temperature exhaust surfaces, it creates an elevated fire risk. Additionally, salt-laden humid air penetrating insulation cladding introduces chlorides that attack underlying carbon steel piping, causing hidden CUI that leads to wall thinning, leakage and unplanned dry-docking repairs.

The Woqin Aerogel Solution

Woqin aerogel blankets address both corrosion and fire risk mechanisms at the source. Boasting a laboratory-tested hydrophobic rate of ≥99.7% in accordance with GB/T 10299 standards, the nanoporous silica matrix repels liquid water at the molecular level. This blocks saltwater moisture penetration and disrupts the electrochemical conditions required for CUI development, protecting steel piping from hidden salt corrosion damage in tropical marine environments.

As an inorganic silica-based material, aerogel does not support combustion and avoids the porous wicking structure of traditional mineral wool. It hardly accumulates leaked hydraulic oil or fuel oil, greatly reducing potential fire sources and flame spread risks in high-temperature engine room environments.

Chapter 3: Reducing Deadweight and Reclaiming Engine Room Space

The Operational Reality

In commercial shipping, payload capacity and fuel economy directly determine profitability. Every unnecessary ton of deadweight and every cubic meter of lost space adds operational cost over the vessel’s service life. Traditional rock wool systems require substantial thickness — often exceeding 150 mm — to achieve required thermal performance on high-temperature piping. This thick insulation crowds engine room layouts, narrows walkways and complicates maintenance access for crew.

The Woqin Aerogel Solution

With a thermal conductivity of 0.020 W/(m·K) at room temperature, Woqin aerogel blankets deliver equivalent thermal performance at roughly 1/3 to 1/4 the thickness of conventional rock wool systems. Thinner insulation allows wider walkways and more compact pipe rack layouts, improving maintenance accessibility and crew safety in confined engine room spaces.

Replacing heavy, bulky mineral wool systems across a vessel’s full pipeline network delivers measurable reductions in total insulation weight. Lower deadweight translates directly to improved fuel efficiency and increased cargo payload capacity over the vessel’s operating lifecycle, bringing continuous economic benefits for ship owners and operators.

Chapter 4: SOLAS-Compliant Marine Fire Safety

The Traditional Limitation

At sea, fire response depends entirely on on-board systems and crew response — there is no external emergency support. Marine fire safety therefore requires zero-compromise material performance and formal certification. Many conventional insulation products achieve only limited fire ratings, and organic binders and additives can release toxic smoke when exposed to high heat, creating major hazards during engine room fires and hindering safe evacuation.

The Woqin Aerogel Solution

Woqin Aerogel Blankets hold official Works Approval from the China Classification Society (CCS), with strict compliance with international marine fire safety standards, including the International Convention for the Safety of Life at Sea (SOLAS) and IMO 2010 FTP Code. Tested per GB 8624 standards, the material achieves Class A1 non-combustible performance, the highest fire safety grade for marine insulation materials.

In the event of an engine room fire, the inorganic silica material does not ignite, does not propagate flame and produces extremely low smoke emission with no toxic fume release, maximizing safe evacuation time for crew and improving overall vessel fire safety margins.

Conclusion: Upgrade to Ocean-Ready Aerogel Insulation

The era of bulky, fragile, moisture-absorbent marine insulation is giving way to higher-reliability aerogel technology. Whether you are constructing a new LNG carrier, retrofitting a bulk carrier at a Southeast Asian drydock, or designing offshore platform modules, your assets deserve insulation engineered to withstand open-ocean conditions.

Backed by Hebei Woqin’s full marine engineering support, including CCS certification documentation, thermal calculations and shipyard installation guidance, our team delivers tailored solutions optimized for maritime operating environments. To request full CCS/IMO certification documents, marine-grade technical datasheets or project samples for your next shipyard project, contact our marine engineering team directly.
