How does aerogel blanket achieve triple breakthroughs in performance, lifespan, and transportation cost?

1. Core Demands for Industrial Pipe Insulation: Performance, Cost, and Sustainability

Insulation for industrial pipes under 300℃ working conditions must meet three core demands simultaneously:

• Heat Loss Control: Reduce heat transfer through materials with low thermal conductivity to ensure process efficiency;

• Long-term Reliability: Materials must remain stable for a long time in high-temperature environments to avoid downtime costs caused by frequent replacements;

• Total Lifecycle Cost: Include not only the material purchase price but also comprehensive costs such as installation, maintenance, transportation, and even disposal costs.

In the application scenario of DN200 pipes, the weight of these three demands will directly affect the final material selection.

2. Performance Comparison of Four Insulation Materials (DN200, 300℃ Working Condition)

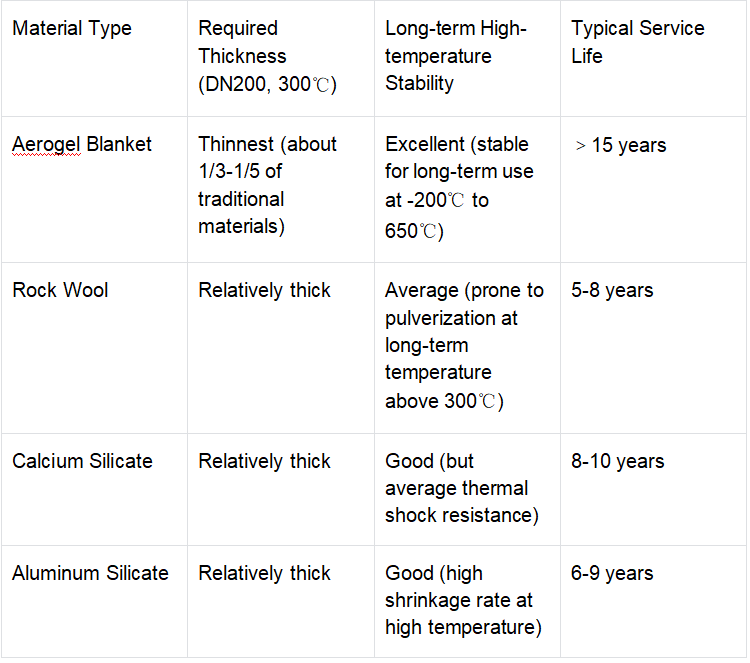

We compare aerogel blankets, rock wool, calcium silicate, and aluminum silicate from three dimensions: insulation thickness, high-temperature stability, and service life:

Note: The thickness comparison is based on theoretical calculations under the requirement of the same thermal conductivity. Actual working conditions need to be adjusted in accordance with engineering standards.

The ultra-low thermal conductivity (λ≤0.018W/(m·K)) of aerogel blankets is the core of their thickness advantage. To achieve the same heat loss control target, the laying thickness of aerogel blankets is much lower than that of traditional materials such as rock wool and calcium silicate. This not only saves installation space but also directly reduces the basic cost of material consumption.

3. Service Life and Total Lifecycle Cost: The "Invisible Profit" of Aerogel Blankets

In industrial operation and maintenance, material service life directly determines the level of total lifecycle cost. A 15-year cycle comparison shows:

• Rock wool needs to be replaced 2-3 times, and calcium silicate needs to be replaced 1-2 times, while aerogel blankets can achieve "one-time laying and long-term stability".

• Downtime losses, labor costs, and secondary procurement costs caused by frequent material replacement will make the actual total cost of traditional materials far exceed the initial purchase price.

The aging resistance and thermal shock resistance of aerogel blankets enable them to maintain structural integrity under 300℃ high-temperature working conditions. Unlike rock wool, which is prone to pulverization and shedding due to long-term high temperature, and calcium silicate, which is prone to cracking due to thermal expansion and contraction—this stability is directly converted into a significant reduction in operation and maintenance costs.

4. Key Variable in Transportation Cost: Why Aerogel Blankets Are More Economical in Export Scenarios

For insulation materials exported from China, sea freight often becomes a non-negligible cost item, and there are even cases where "freight costs are higher than the value of goods". At this time, the lightweight and thin characteristics of aerogel blankets are greatly amplified:

• The density of aerogel blankets is only 100-200kg/m³, and the thickness is thin. Under the same insulation area, their transportation volume and weight are much lower than those of rock wool (density 100-200kg/m³ but thick) and calcium silicate (density 200-300kg/m³).

• Taking a standard container (20GP) as an example, the loading capacity of aerogel blankets is 2-3 times that of traditional materials, which directly spreads the sea freight cost per unit product.

For export-oriented enterprises, choosing aerogel blankets means meeting insulation performance while significantly reducing international logistics costs. In the international trade environment with "high sea freight costs", this is a key bargaining chip to enhance product competitiveness.

Conclusion: Aerogel Blankets Are the "Optimal Solution" for DN200 Pipe Insulation at 300℃

In the insulation demand for DN200 pipes at 300℃, aerogel blankets have achieved dual leadership in performance and economy through thinner laying thickness, longer service life, and lower sea freight costs. It is not only a technical upgrade of insulation materials but also a strategic choice for enterprises in total lifecycle cost control and international trade competitiveness improvement.

If you are facing insulation decisions for similar working conditions, you may wish to include aerogel blankets in your core considerations—it may be the key answer that can solve both "performance compliance" and "cost optimization".
