Rethinking Facade Retrofits: How Flexible MCM-Aerogel Panels Solve the Heritage Thermal Dilemma (Pros & Cons)

1. Introduction: The Heritage Thermal Dilemma

For architects and specifiers dealing with historic buildings or complex urban retrofits, the exterior envelope presents a seemingly impossible challenge—the "Heritage Thermal Dilemma."

Upgrading an old masonry building to meet modern energy codes (such as Passivhaus standards) traditionally requires thick layers of rigid insulation like EPS or PIR. However, applying these bulky materials to the exterior fundamentally alters the historical footprint, buries original window reveals, and disrupts the architectural aesthetic. Furthermore, traditional multi-layer External Wall Insulation (EWI) systems require excessive on-site wet trades, introducing significant human error, weather delays, and structural risks related to trapped moisture.

2. The Engineering Innovation: Factory-Bonded MCM-Aerogel Systems

To resolve this bottleneck, Hebei Woqin has engineered a highly prefabricated, one-step facade solution.

Instead of relying on fragmented components assembled on-site, we utilize a proprietary thermal-pressing process to factory-bond our globally tested Silica Aerogel Blanket (0.020 W/(m·K) at 25°C) directly to a Modified Clay Material (MCM) decorative facing. This creates a cohesive, flexible composite panel that delivers extreme thermal resistance and a high-end architectural finish in a single installation step. By bonding the materials in a controlled factory environment, the system effectively mitigates the risk of delamination caused by differential thermal expansion—a common failure point in site-assembled EWI systems.

3. The Advantages (Pros): Why Specifiers Choose This System

3.1. Extreme Thinness & Space Recovery

Utilizing the 0.020 W/(m·K) aerogel core, engineers can meet stringent U-value regulations at a fraction of the thickness required by mineral wool or synthetic foams. This ultra-thin profile ensures that historical details—such as rooflines, cornices, and eaves—remain visually unaltered, eliminating the need for expensive structural extensions.

3.2. Architectural Compliance & Heritage Matching

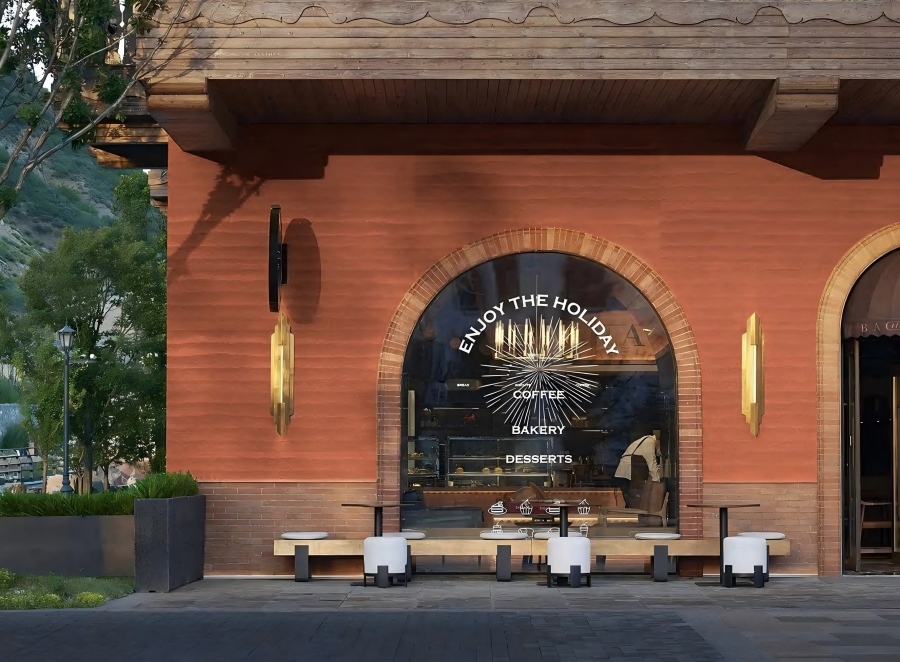

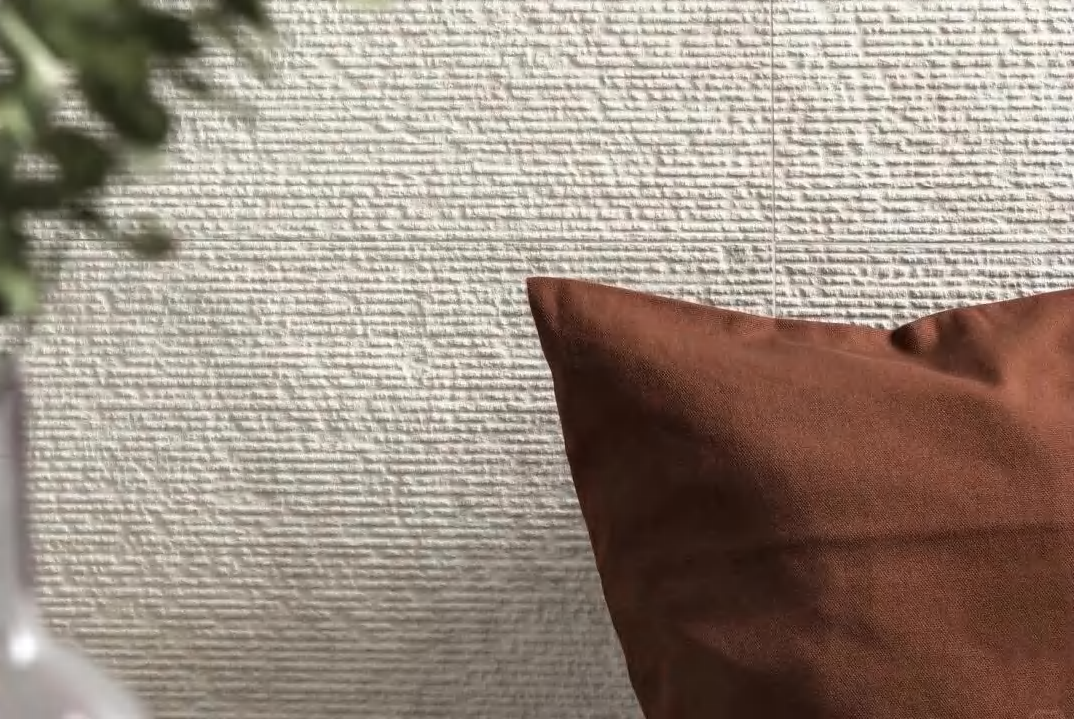

Strict planning permissions often block thermal upgrades on listed or heritage buildings. The MCM facing, crafted from modified natural stone and clay powders, bypasses this hurdle. We achieve a 90%+ texture similarity, based on custom pigment matching from original brick or stone samples, allowing the new facade to replicate aged red brick, rammed earth, or natural timber seamlessly.

3.3. Mastering Complex Geometry & Curved Surfaces

Rigid insulation boards cannot easily accommodate organic architectural shapes. In contrast, both our aerogel core and the MCM facing possess inherent flexibility.

This structural flexibility allows the panels to wrap securely around complex columns, archways, and sweeping curved walls without the need for segmented cuts or risking micro-cracks over time.

3.4. The Elimination of Wet Trades

Taking the assembly risk off the construction site changes the project timeline entirely. By utilizing a "1-Step Install" approach, contractors only need to apply the specific adhesive and secure the panel. This eliminates the multi-stage rendering, meshing, and curing processes, resulting in a 50% labor cost reduction vs. traditional multi-layer EWI systems, while also reducing scaffolding rental durations.

3.5. Uncompromised Safety & Moisture Management

When insulating old, solid masonry walls, breathability is non-negotiable. Trapped moisture leads to interstitial condensation and structural decay.

• Moisture Defense: The aerogel core boasts a 99.7% hydrophobicity rate (repelling liquid water) while remaining highly vapor-permeable. This allows the heritage wall to "breathe" naturally.

• Fire Performance: The aerogel core achieves a Class A1 non-combustible rating, and the MCM facing holds a Class A (A2-s1, d0) rating, meeting strict Euroclass standards for non-combustible facades.

• Eco-Compliance: Fully certified by REACH and RoHS, the system contains zero SVHCs, zero heavy metals, zero formaldehyde, and zero VOCs.

4. The Challenges (Cons): What to Consider

To make an informed engineering decision, specifiers must also weigh the operational considerations:

4.1. Higher Initial Material CostThe Engineering Offset: The per-square-meter material cost of aerogel composite panels is higher than commodity insulations like EPS. However, specifiers must evaluate the Total Installed Cost (TIC). Factoring in the drastic reduction in labor hours, the elimination of mechanical fixings and heavy stud frames, and the expedited project handover, the overall financial margin of the project is often vastly improved.

4.2. Substrate Preparation RequirementsThe Engineering Offset: As a highly engineered thin-profile system that relies on adhesive bonding, it requires a relatively flat and stable substrate. Deeply heavily eroded historic masonry may require a breathable, compatible leveling mortar application prior to panel installation to ensure a permanent bond.

5. Official Technical Specifications (System Summary)

• Thermal Conductivity (Aerogel Core): 0.020 W/(m·K) @ 25°C (Tested via GB/T 10295-2008).

• Hydrophobicity (Aerogel Core): 99.7% (Water-repellent, vapor-permeable).

• Water Absorption (MCM Facing): 8.13% (SGS Tested).

• Density (MCM Facing): ~1702 kg/m³ (High impact durability).

• Fire Rating: Class A / A2-s1, d0 (Non-combustible).

• Standard Dimensions: 1200mm × 600mm / 600mm × 600mm (Custom core thickness available from 5mm to 20mm).

6. Conclusion

The most significant risks in facade engineering do not lie within individual materials, but at the interfaces and gaps between them on the job site. By adopting factory-bonded MCM-Aerogel panels, architects and contractors can secure predictable thermal longevity, preserve architectural heritage, and maintain a single point of accountability.
