Beyond Flatness: How Advanced Aerogel Manufacturing Improves BESS Thermal Pad Reliability

1.Introduction: The Real Challenge Isn't Flatness—It's Manufacturing Stability

When a robotic suction cup misses an insulation pad on a battery assembly line, the cause is rarely the robot alone. Among many possible contributing factors, slight material deformation can interfere with positioning accuracy, requiring repeated pick-and-place attempts, additional vision correction or manual intervention.

As Battery Energy Storage Systems (BESS) continue moving toward highly automated manufacturing, the performance expectations for thermal insulation materials are evolving beyond thermal conductivity alone.

Today's production environments require insulation components that not only provide reliable thermal protection but also maintain dimensional stability, repeatable positioning and seamless compatibility with robotic assembly systems.

One manufacturing challenge, however, continues to affect production consistency across the industry: the tendency of aerogel insulation pads to warp after fabrication.

Many manufacturers attempt to improve flatness through secondary calendering or flattening processes. While these methods may improve the appearance of finished components, they generally address visible deformation rather than the root manufacturing mechanism.

For automated battery production, even minor dimensional variation can influence robotic handling, vacuum sealing consistency and assembly repeatability. What appears to be a small material issue can potentially affect production yield, equipment utilization and overall manufacturing efficiency.

Understanding why aerogel pads warp—and why simple post-flattening may not fully resolve the issue—requires looking beyond the finished product and examining core manufacturing logic.

2. The Hidden Manufacturing Problem Behind Warped Aerogel Pads

Warping is often regarded as a surface quality issue. In most cases, it is the visible result of manufacturing-induced residual stress.

During conventional roll-to-roll (R2R) production, aerogel blankets are manufactured, cured and stored in tightly wound rolls. Throughout the curing process, the silica aerogel matrix and reinforcing substrate stabilize while remaining in a continuous curved configuration. This process may introduce residual stress and the roll memory effect into the material structure.

After the blanket is converted into individual battery insulation pads, the material may exhibit a natural tendency to recover part of its original rolled geometry.

Although the deformation may appear minimal, its influence becomes prominent in highly automated manufacturing environments where precise dimensional consistency is mandatory.

• Reduced robotic pick-and-place consistency caused by uneven pad flatness

• Increased vision-system correction frequency during automated positioning

• Variable vacuum sealing performance due to localized lifting or edge distortion

• Extra manual intervention and rework during battery module assembly

• Lower Overall Equipment Effectiveness (OEE) resulting from increased process variability




These challenges are unrelated to the intrinsic thermal insulation capability of aerogel. Instead, they stem directly from the limitations of traditional roll-to-roll manufacturing workflows. As battery manufacturing pursues higher throughput, tighter dimensional tolerances and intelligent automation, manufacturing stability has become equally critical as core thermal performance.

3. Why Calendering isn't the Complete Solution

To improve the flatness of aerogel insulation pads, many manufacturers adopt secondary calendering or flattening post-processing. These techniques can optimize the surface appearance of finished components and reduce visible deformation.

However, from a manufacturing engineering perspective, calendering is only a remedial post-processing operation.

By the time flattening is performed, the aerogel blanket has already completed its curing cycle. Residual stress generated during roll-to-roll manufacturing has already been embedded within the silica aerogel matrix and reinforcing substrate.

While external compression can temporarily improve flatness, it cannot fundamentally adjust the internal stress distribution formed during production.

As a result, subtle dimensional recovery may still occur during long-term storage, transportation, repeated handling or subsequent assembly operations.

For conventional general insulation scenarios, this minor deformation range is acceptable. For highly automated battery manufacturing, however, production engineers prioritize dimensional consistency achieved through inherent process design, rather than relying on secondary correction.

This subtle technical distinction is increasingly critical as battery production upgrades toward high automation and ultra-tight dimensional tolerances.

4. From Process Correction to Process Design

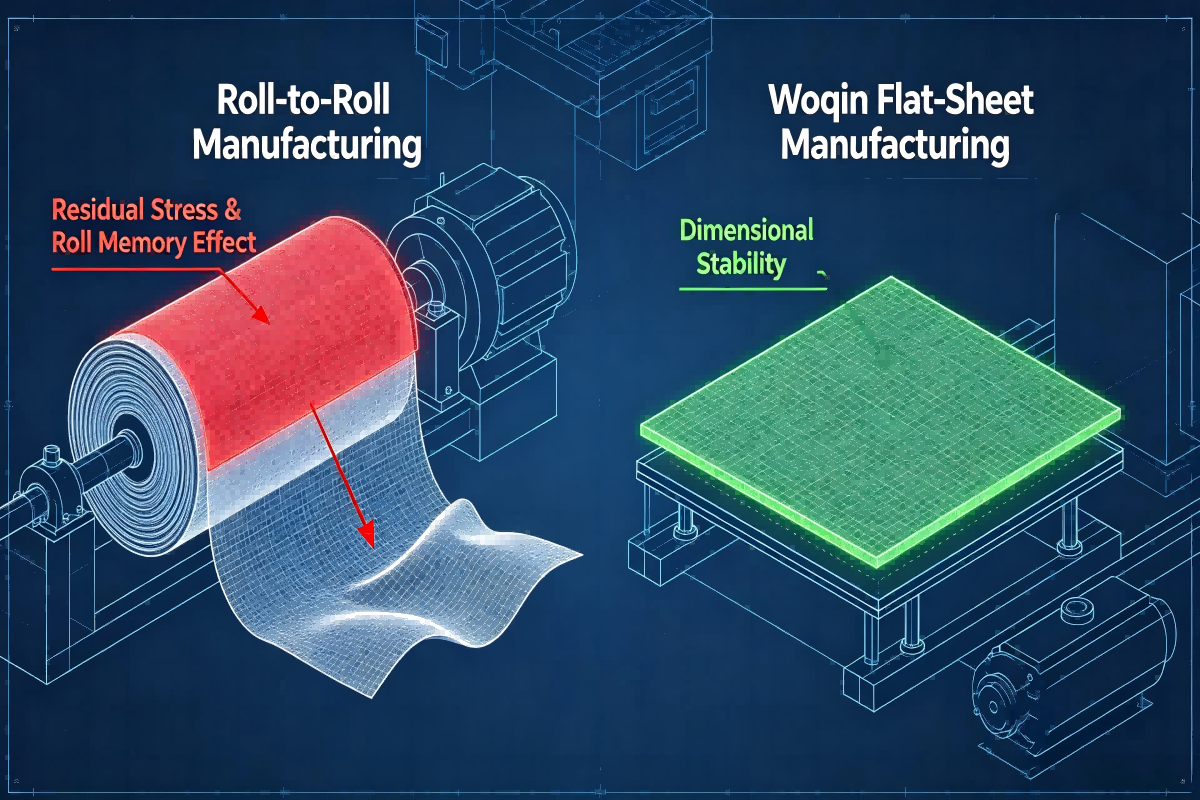

Rather than correcting deformation after production, Woqin optimizes manufacturing logic to reduce deformation at the source.

For dedicated BESS insulation products, Woqin developed a high-density flat-sheet manufacturing process tailored for automated battery mass production.

Unlike conventional roll-to-roll manufacturing, the reinforcing substrate remains fully flat throughout forming, impregnation and curing stages. Without high-tension winding curing, the formation of residual curved stress is significantly suppressed.

This process avoids post-production correction fundamentally, reducing deformation risks during the manufacturing stage.

This represents a core upgrade in manufacturing philosophy:

Instead of asking: "How can we flatten a curved insulation pad?"

The optimized engineering question becomes: "How can we manufacture an insulation pad that maintains stable dimensions from production to application?"

As manufacturing automation continues to iterate, this process-first design delivers higher practical value for battery manufacturers pursuing consistent high-volume production.

5. Engineering Benefits for Automated Battery Manufacturing

The value of flat-sheet manufacturing extends far beyond visual flatness. More importantly, it delivers stable and repeatable performance throughout automated battery production workflows.

5.1 Improved Robotic Pick-and-Place Consistency

Stable and uniform dimensional geometry enables robotic suction systems to achieve reliable contact during high-speed pick-and-place operations. Reduced surface variation lowers repeated gripping attempts, vision-system compensation and unnecessary production interruptions.

5.2 More Consistent Vacuum Sealing

Uniform flat insulation surfaces ensure even contact during vacuum sealing and lamination processes. By minimizing localized edge lifting and surface irregularities, the material supports higher assembly consistency for battery modules.

5.3 Enhanced Mechanical Stability

The high-density flat-sheet structure provides improved compressive resistance compared with conventional rolled blanket materials. This enhanced structural stability accommodates minor dimensional changes caused by cell expansion during long charge-discharge cycles, improving overall assembly durability.

5.4 Improved Manufacturing Efficiency

In automated production scenarios, material consistency is as valuable as core thermal performance. Reducing deformation-induced process variation helps improve production repeatability, lower manual intervention rates and elevate overall Equipment Effectiveness (OEE) of production lines.

The core goal is not simply to produce flatter insulation pads, but to deliver insulation components with stable and predictable performance throughout robotic handling, vacuum sealing and final module assembly.

6. Where Flat-Sheet Manufacturing Creates the Greatest Value

Flat-sheet aerogel manufacturing delivers unique advantages in scenarios where dimensional consistency directly determines production efficiency, rather than only relying on thermal performance indicators.

Its practical advantages are more prominent in highly automated, high-throughput battery production environments.

6.1 Battery Energy Storage Systems (BESS)

Modern BESS production relies heavily on robotic handling, automatic positioning and vacuum-assisted assembly. Tiny geometric variations of insulation pads may introduce unnecessary process fluctuations. Flat-sheet aerogel insulation effectively stabilizes dimensional consistency, supporting repeatable assembly and smooth automated operation.

6.2 Electric Vehicle Battery Modules

As EV battery packs pursue higher energy density, internal packaging tolerances become increasingly stringent. Dimensionally stable insulation materials maintain uniform spacing between cells and structural components, adapting to compact and high-precision battery pack architectures.

6.3 Liquid-Cooled Battery Systems

Liquid-cooled battery packs require precise matching between cooling plates, insulation layers and structural parts. Consistent insulation geometry improves installation repeatability and reduces assembly deviation in high-volume production.

6.4 Intelligent Battery Manufacturing

For manufacturers building smart factories and fully automated production lines, material consistency has become a core competitive advantage. Reducing material-caused process variation stabilizes production quality, cuts manual costs and supports long-term OEE improvement.

7. Engineering Decision Framework

Thermal conductivity has long been the core indicator for insulation material selection. However, with the rapid upgrade of battery manufacturing automation, a new critical engineering dimension needs to be fully considered: material stability during the entire manufacturing process.

The following comparison clearly presents the practical differences between traditional roll-to-roll production and optimized flat-sheet manufacturing:

Engineering teams need to consider not only"Which material has the lowest thermal conductivity?", but also "Which manufacturing process matches the dimensional stability requirements of automated mass production?". This shift represents the upgraded evaluation logic of modern battery thermal management systems.

8. Technical Boundary Conditions & Compliance Disclaimer

All process analyses, performance descriptions and application cases in this article are derived from controlled manufacturing verification and engineering evaluation data. Actual on-site performance is affected by battery pack architecture, product thickness specifications, automation equipment configuration, assembly processes, transportation and storage environments.

All content in this article is for professional technical reference only, not constituting any product performance guarantee or contractual commitment. Thermal performance, fire resistance and compliance indicators shall be subject to official third-party test reports and project-specific design requirements.

9. Conclusion

For a long time, insulation materials for batteries have been evaluated mainly by thermal conductivity and fire resistance performance. With the comprehensive upgrade of battery intelligent manufacturing, manufacturing stability has become an indispensable core evaluation indicator.

Dimensionally stable aerogel pads are not achieved through simple secondary flattening, but rely on inherent process optimization in the manufacturing stage.

By transforming from post-correction manufacturing to source-process design, Woqin flat-sheet technology effectively weakens the roll memory effect of traditional aerogel materials, supporting stable robotic handling, repeatable assembly and efficient high-volume production for BESS and battery modules.

The future of battery insulation evaluation balances thermal performance and manufacturing consistency. In high-precision automated production, dimensional stability is no longer a simple product feature, but a key engineering parameter equal to thermal conductivity.

Every stable robotic cycle ultimately determines the overall yield and efficiency of battery manufacturing lines.
