Coastal Petrochemical CUI Prevention: Typhoon-Resilient Hydrophobic Aerogel Blanket Solutions for Ulsan and Chiba

The Inherent Defect of Traditional Hydrophilic Insulation: Unpacking the "Saltwater Sponge" Effect

Conventional insulation materials such as calcium silicate and mineral wool have been the industry standard for decades. However, in coastal CUI-prone temperature zones (10°C to 350°C, covering atmospheric distillation, catalytic cracking, and hydrocracking process piping), these materials harbor a fundamental structural vulnerability.

These hydrophilic materials rely entirely on outer metallic cladding for weather protection. On the surface, this seems reasonable—a stainless steel or aluminum jacket should repel rain and salt spray. In practice, this defense is fragile. Cladding seams, rivet holes, and overlap joints form thousands of potential entry points across a typical refinery's pipeline network.

• Structural Overload Risk: During a typhoon event, high winds can tear or completely remove sections of outer cladding. Traditional hydrophilic materials act as capillary wicks, rapidly absorbing brine moisture. A cubic meter of dry calcium silicate weighing approximately 200 kg can absorb enough water to reach 600–1,000 kg (a 3-5 times weight increase). This sudden mass overload exceeds the design capacity of standard pipe supports, risking sagging, weld fracture, and structural collapse.




• Thermal Performance Degradation: Water has a thermal conductivity approximately 25 times higher than still air. When traditional insulation becomes waterlogged, its effective thermal conductivity spikes by 2–3 times. Process temperatures fluctuate uncontrollably, energy consumption surges, and condensate forms in product lines designed for vapor-phase operation.




• Accelerated Hidden Corrosion: Trapped brine creates a permanent high-humidity microclimate directly against the steel pipe wall. Under these conditions (60–200°C), carbon steel can experience corrosion rates of 1–3 mm per year, and localized pitting can penetrate 6mm pipe walls in under five years. For austenitic stainless steel, the concentrated chloride environment triggers Stress Corrosion Cracking (SCC).




Technical Specifications Comparison

To help engineering teams make data-driven decisions, the table below outlines the physical and thermal performance gaps between traditional calcium silicate/mineral wool and Hebei Woqin's advanced silica aerogel blanket.

Note on Hydrophobicity: The integral hydrophobic structure is retained up to approximately 300°C. Above this temperature, the material's inorganic matrix and ultra-low soluble chloride content (< 20 ppm) continue to provide robust CUI defense by preventing chloride accumulation and electrolyte formation, even if the hydrophobic function gradually diminishes.

Hebei Woqin's Optimized Solution: Full-Structure Hydrophobic Thermal Barrier Aerogel Blanket

Industry Standard Compliance

• NACE SP0198 Aligned: Material selection and CUI defense strategy validated by the industry's most authoritative standard for corrosion control under insulation.




• ASTM C795 Compliant: Verified soluble chloride content below 20 ppm, ensuring absolute safety in contact with austenitic stainless steel.

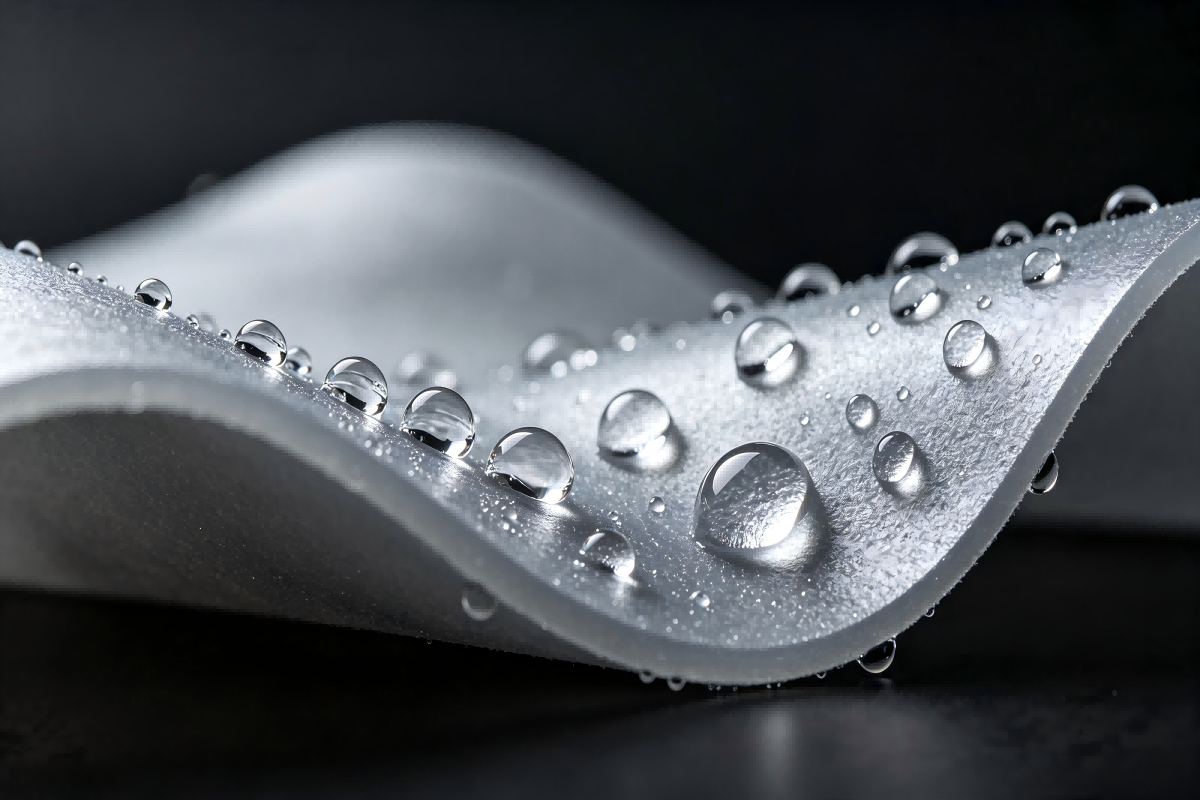

The critical distinction lies in the hydrophobic mechanism. Standard insulation products often feature surface-level water-repellent coatings that degrade under thermal cycling, UV exposure, and mechanical abrasion. Hebei Woqin's aerogel achieves ≥99.7% water repellency through whole-material molecular modification. Every pore, every fiber interface, and every internal surface is initially hydrophobic. If the blanket is cut, the exposed cross-section is just as water-repellent as the outer surface.

Resolving Critical Pain Points in Coastal Petrochemical Operations

High-Temperature Process Piping — The Primary CUI Generation Zone

The temperature range of 10°C to 350°C represents the highest CUI risk band in any refinery. Traditional calcium silicate in this zone presents a compounding problem: it contains chemically bound water within its crystal structure. When heated, this water of crystallization can be released, creating an internal moisture source that condenses on the cooler outer pipe surface during temperature cycles.

The Aerogel Blockade:

No Bound Water: Hebei Woqin’s aerogel contains no chemically bound water—it is 100% inorganic amorphous silica.

Vapor Open, Liquid Closed: While the nanoporous structure is hydrophobic to liquid water, it remains open to water vapor diffusion. Any trace vapor is driven outward by the thermal gradient, effectively "pumping" moisture away from the steel surface. The pipe wall remains permanently dry, starving the CUI electrochemical reaction of its essential electrolyte. Even under sustained high-temperature exposure where hydrophobic function may fade, the material's <20 ppm chloride content and non-absorbent matrix prevent the chloride corrosion mechanism that drives CUI.

Typhoon and Extreme Storm Exposure — Near-Zero Moisture Absorption

The Aerogel Blockade:

Zero Saturation: Even when fully exposed and submerged, our aerogel blanket absorbs negligible water.

Rapid Recovery: Post-typhoon recovery shifts from a major reconstruction effort (which usually requires stripping and replacing waterlogged mineral wool) to a simple cladding repair. Emergency repair workloads are reduced by over 80%, allowing process units to return to service within days rather than weeks.

Chronic Salt Fog Erosion and SCC Risk Mitigation

Even without typhoons, coastal refineries face a relentless daily assault from marine salt fog. Over months and years, chlorides penetrate cladding gaps and concentrate within traditional insulation materials, inducing Stress Corrosion Cracking (SCC) on stainless steel.

Chloride Exclusion: The hydrophobic matrix prevents chloride-laden moisture from wetting the insulation interior. There is no wicking, no concentration, and no sustained contact between chlorides and the stainless steel surface. Combined with a soluble chloride content below 20 ppm, it eliminates the chloride source that drives SCC, extending insulation service life to 3–5 times that of mineral wool.

Complex Pipe Joints and Dense Pipe Rack Layouts

Valves, flanges, tees, and elbows are notorious CUI blind spots where localized corrosion rates reach 3–8 times those of straight pipe sections. Traditional rigid insulation cannot conform to these shapes, creating water traps. In dense pipe racks, bulky traditional insulation is too thick to apply properly.

Flexible Conformity: The blanket can be cut on-site and wrapped tightly around complex geometries with no gaps.

Ultra-Thin Profile: Achieving equivalent thermal performance at 1/5 the thickness of calcium silicate, it easily penetrates tight clearances in densely packed pipe racks, eliminating dead zones and CUI blind spots.

Turnaround (TAR) Inspection and Maintenance Efficiency

Scheduled plant turnarounds (TAR) are major financial and operational burdens. Traditional insulation removal generates large volumes of hazardous waste (waterlogged boards, fiber dust, and rust debris) and cannot be reused, requiring 100% replacement.

Clean, Low-Dust Removal: Because the aerogel remains dry, removal is clean and dust-free.

Reusability: The structurally stable blanket can be detached, stored, and reinstalled after inspection is complete, drastically reducing replacement material costs.

Shorter Downtime: TAR insulation-related labor is reduced by over 60%. Major overhaul intervals, traditionally forced by CUI-driven pipe replacements every 3–5 years, can be extended to 15–20 years.

Site Safety and Regional Regulatory Compliance

The Aerogel Blockade:

Leak Prevention: By suppressing CUI, our aerogel eliminates the primary pipeline degradation pathway that leads to flammable vapor or toxic chemical leaks.

A1 Non-Combustible Fire Rating: Verified per EN 13501-1, it contributes zero fuel load in the event of an external fire.

Safe Formulation: The low-fiber formulation avoids respirable crystalline silica and ceramic fiber concerns, fully protecting maintenance crews and satisfying local occupational health mandates.

Total Cost of Ownership (TCO) Lifecycle Optimization

Traditional insulation creates a classic "cheap to buy, expensive to own" trap. Post-typhoon emergency replacement, energy penalties from wet insulation, and CUI weld repairs drive the total lifetime expenditure of traditional materials to 8–10 times their initial purchase price.

40% Lifecycle Savings: Hebei Woqin’s aerogel shifts insulation from an OPEX drain into a CAPEX asset. By eliminating post-typhoon replacements, reducing energy loss, and drastically extending pipe lifespans, it lowers the overall 20-year lifecycle insulation cost by over 40%.

Strategic Action for Coastal Asset Corrosion Defense

Marine salt fog and typhoon weather patterns will remain unchanged for Ulsan and Chiba chemical zones. However, asset protection strategies can be upgraded to match the severity of the operating environment. Upgrading to Hebei Woqin's advanced aerogel is a comprehensive, long-term defense system that pays for itself through avoided downtime, stabilized maintenance budgets, and extended asset life.

Request Samples and Technical Documentation

Optimize your plant's typhoon and CUI defense system today. Contact Hebei Woqin Trading Co., Ltd. to:

• Request storm-immersion-resistant aerogel blanket samples for on-site evaluation.




• Obtain a customized TCO lifecycle evaluation report tailored to your facility's pipeline inventory.




• Access the complete Coastal CUI Defense Technology Whitepaper, including third-party test data and ASTM C795/NACE SP0198 compliance documentation.




Website: www.cn-aerogel.com

Disclaimer

All performance data, cost reduction ratios, and service life indicators presented in this document are derived from standardized third-party laboratory testing (including water immersion testing per GB/T 10299, thermal conductivity testing per GB/T 10294, and soluble chloride testing per GB/T 17393) and verified through actual operating records from coastal petrochemical projects in South Korea and Japan. Actual performance may vary based on on-site conditions. This document is for professional technical reference and does not constitute a formal commercial performance guarantee.
