44 kPa vs 1255 kPa: Why Pipe Insulation Slumps and How Aerogel Stops CUI

The Invisible Enemy of Industrial Piping: Insulation Slump

Corrosion Under Insulation (CUI) costs the global oil and gas industry billions of dollars annually. When fighting CUI, most engineers focus on protective coatings or external metallic cladding. However, one of the most destructive root causes remains largely ignored: Insulation Slump.

Insulation slump is a catastrophic physical failure that occurs beneath the cladding. But why does it happen, and why are traditional materials failing your pipelines?

The Mechanics of Slumping: Weight vs. Tensile Strength

For decades, the industry has relied on fibrous insulation materials like Aluminum Silicate or Mineral Wool. To understand why they fail, we must look at their mechanical properties.

In real-world site conditions, fibrous insulation inevitably absorbs moisture from condensation or rain. When water fills the gaps between the fibers, the material becomes exponentially heavier. Here is where the physics of failure begins:

According to laboratory test data, traditional Aluminum Silicate insulation has a tensile strength of only 44 kPa.

When the wet material gets heavy, that weak 44 kPa framework cannot support its own weight. Gravity takes over, tearing the fibers apart. The insulation physically sags and compacts at the bottom of the pipe.

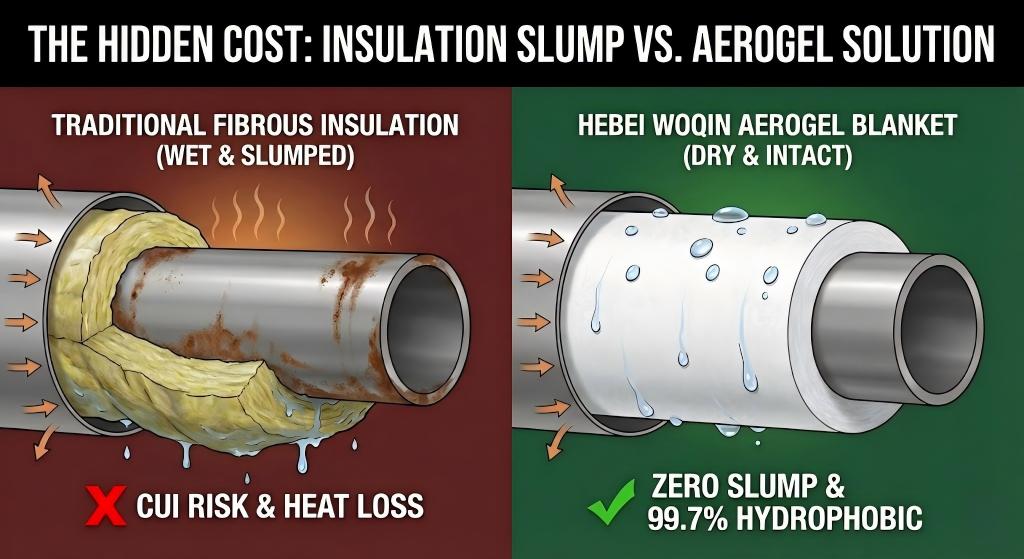

The Double Disaster of Insulation Slump

Once the insulation slumps, a double disaster occurs beneath the metal cladding:

1. Top of the Pipe (Massive Heat Loss): The insulation at the top stretches thin or tears open completely. The pipe is left exposed, causing massive energy waste and increasing operational costs (OPEX).

2. Bottom of the Pipe (The Ultimate CUI Incubator): The slumped, compacted insulation turns into a heavy, wet sponge at the bottom of the pipe. It traps moisture directly against the steel surface permanently, accelerating CUI at an uncontrollable rate.

The Ultimate Solution: Hebei Woqin’s Engineered Aerogel

Solving insulation slump requires a material engineered with immense structural integrity and extreme water resistance. This is why Hebei Woqin’s Hydrophobic Silica Aerogel Blankets are changing the industry standard.

According to our 3rd-party lab reports, Woqin Aerogel fundamentally eliminates slumping through two core advantages:

• 1255 kPa Transverse Tensile Strength: Compared to the 44 kPa of aluminum silicate, Woqin Aerogel offers an immense tensile strength of 1255 kPa (and 414 kPa longitudinally). This structural superiority means the aerogel blanket never tears, sags, or loses its shape, firmly hugging the pipe for decades.

• 99.7% Hydrophobic Rate: Our aerogel actively repels liquid water. Because it never gets wet, it never gets heavy. Without added water weight, gravity cannot compromise its structural integrity.

• Uncompromising Thermal Performance: It achieves an ultra-low thermal conductivity of 0.020 W/(m·K) at 25°C, and maintains a highly efficient 0.039 W/(m·K) even at extreme temperatures of 300°C—all while being Class A1 Non-combustible.

Stop Wrapping Your Assets in Sponges

Investing in high-temperature pipe insulation shouldn't mean buying a sponge that will slump and cause CUI in a few years. It’s time to upgrade to a material that maintains its structural and thermal integrity for the lifespan of your facility.
